| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

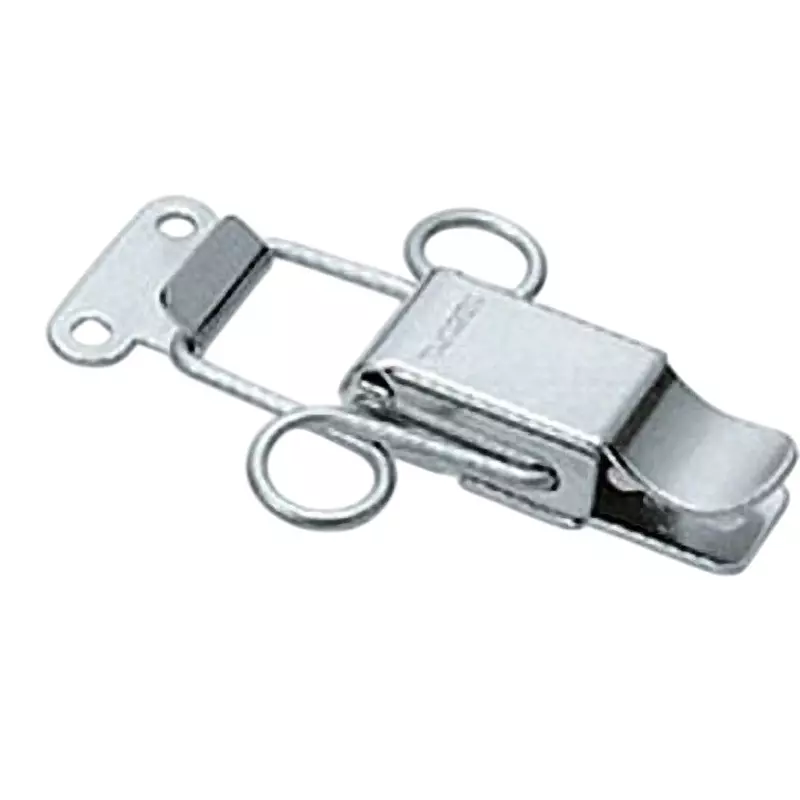

| Type of Product | Spring Snap Lock |
| Model No | C-1146-1 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Spring Snap Lock |
Model No |
C-1146-1 |
Material |
Cold Rolled Stainless Steel Sheet (SUS304) |
Surface Finish Type |
Barrel Polishing |
TAKIGEN Code |
20850 |
Monotaro ID |
62813686 |

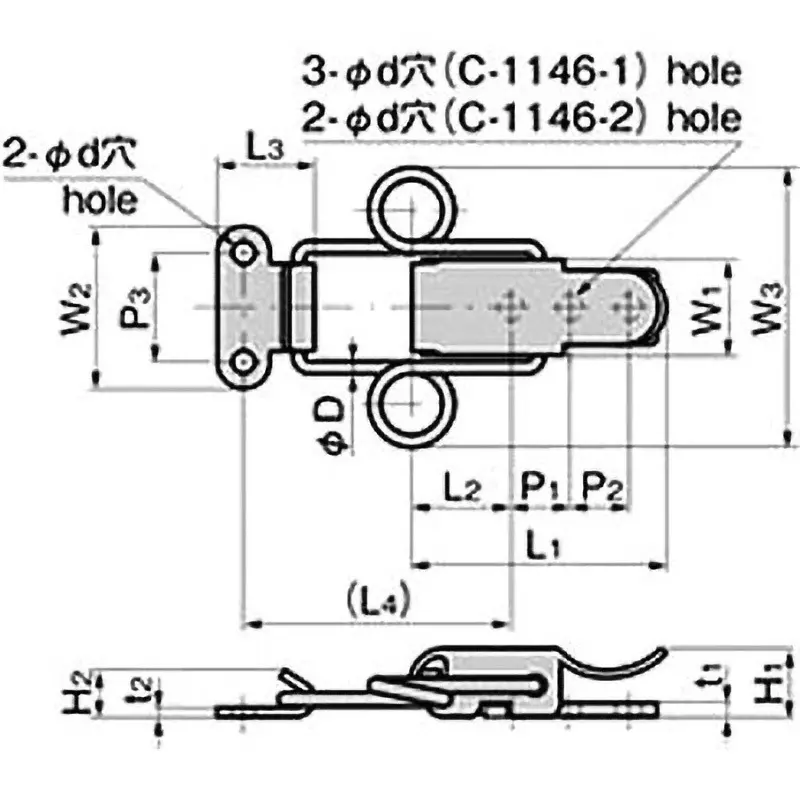

Dimensions L1 (mm) |
61 |
Dimension L3 (mm) |
22 |
Dimensions l2 (mm) |
23 |
Dimension t1 (mm) |
2 |
Dimensions l4 (mm) |
63 |
Dimensions W2 (mm) |
37 |
Dimension W3 (mm) |
65 |
Dimension t2 (mm) |
2 |
Dimensions W1 (mm) |
23 |
Dimensions H2 (mm) |
11 |
Tensile Load (N) |
52 |
Dimensions H1 (mm) |
16 |
Dimension D (Φmm) |
3 |
