Ships within 25 days
View
View
View
View
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

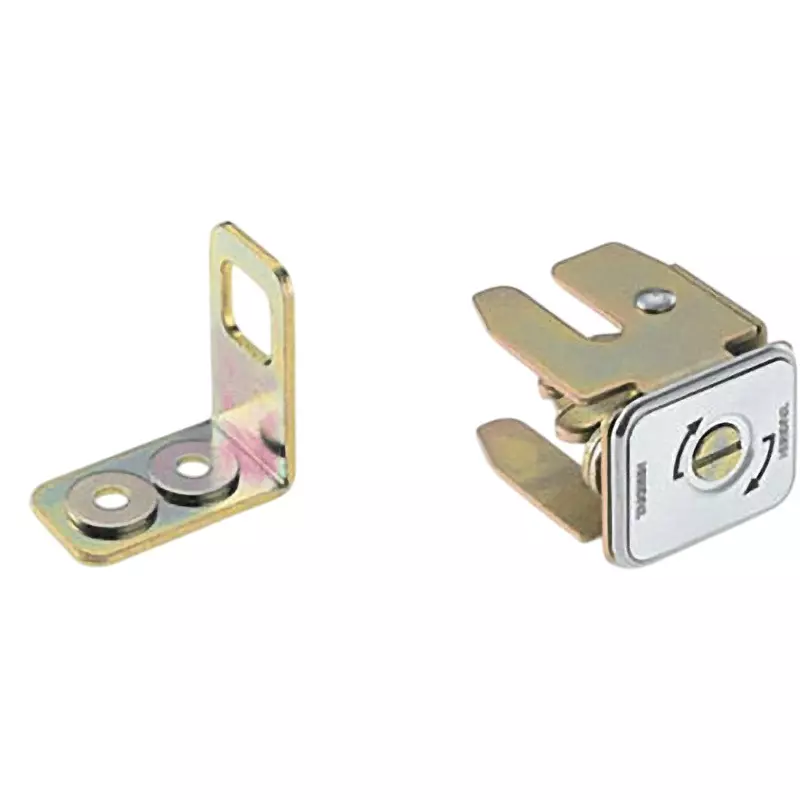

| Type of Product | Slit Lock Type IV |
| Model No | C-550-A-2 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Slit Lock Type IV |
Model No |
C-550-A-2 |
Material |
Cold Rolled Steel Plate (SPCC), Mounting Plate: Stainless Steel Plate (SUS304) |
Weight |
22 g |
Surface Finish Type |
Body: Zinc Plating Chromate Treatment (MFZn-C), Mounting Plate: Gloss Barrel Polishing |
TAKIGEN Code |
22649 |
Monotaro ID |
61123326 |
Maximum Panel Thickness (mm) |
2 |

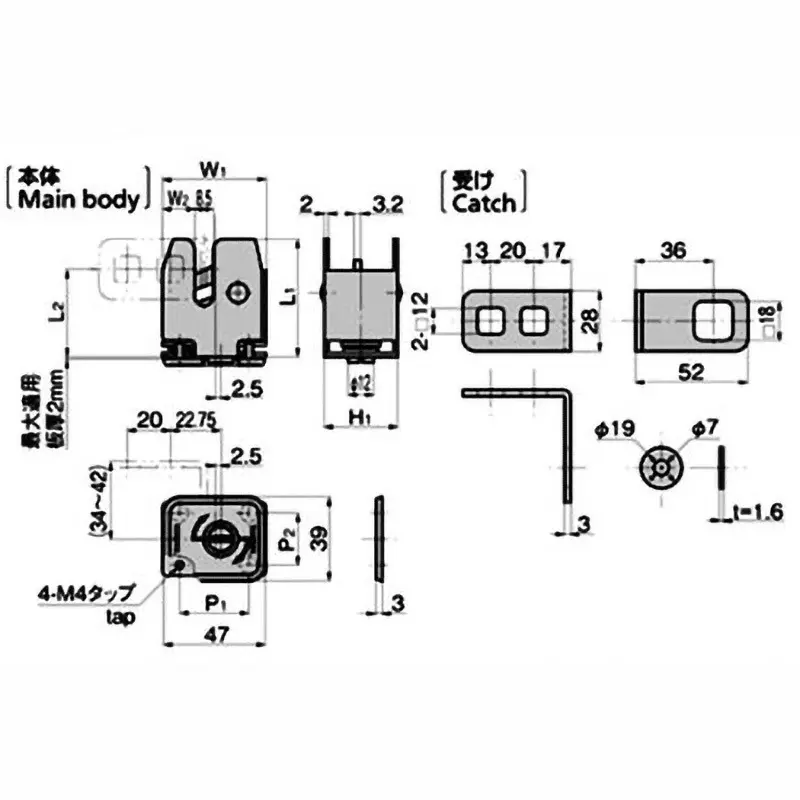

Dimensions L1 (mm) |
47 |
Dimensions l2 (mm) |
36.5 |
Pack of |
1 Pc |
Dimensions W2 (mm) |
11 |
Dimensions W1 (mm) |
40 |
Dimensions H1 (mm) |
30 |
Dimension P4 (mm) |
12.5 |
Dimension P3 (mm) |
17.5 |
Dimension P1 (mm) |
30 |
Dimension P2 (mm) |
20 |
Import Country |
Direct Import from Japan |
