| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

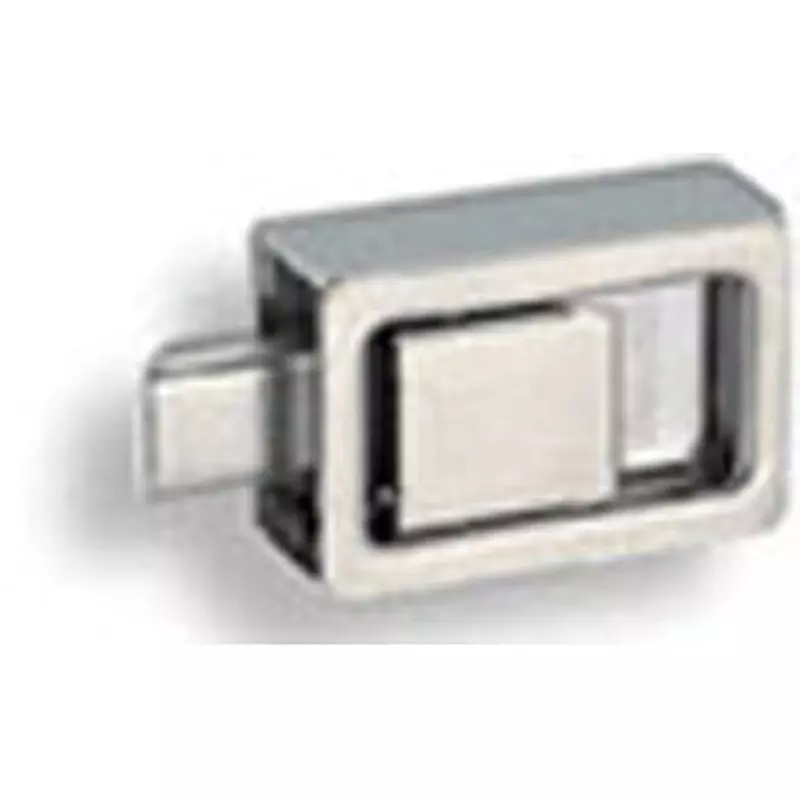

| Type of Product | Stainless Steel Flat Latch Lock |
| Model No | C-1177-4 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Stainless Steel Flat Latch Lock |
Model No |
C-1177-4 |
Material |
Latch: Polyacetal (POM) |
Included Components |
Auxiliary mounting plate |
Weight |
35 g |
Monotaro ID |
61125408 |

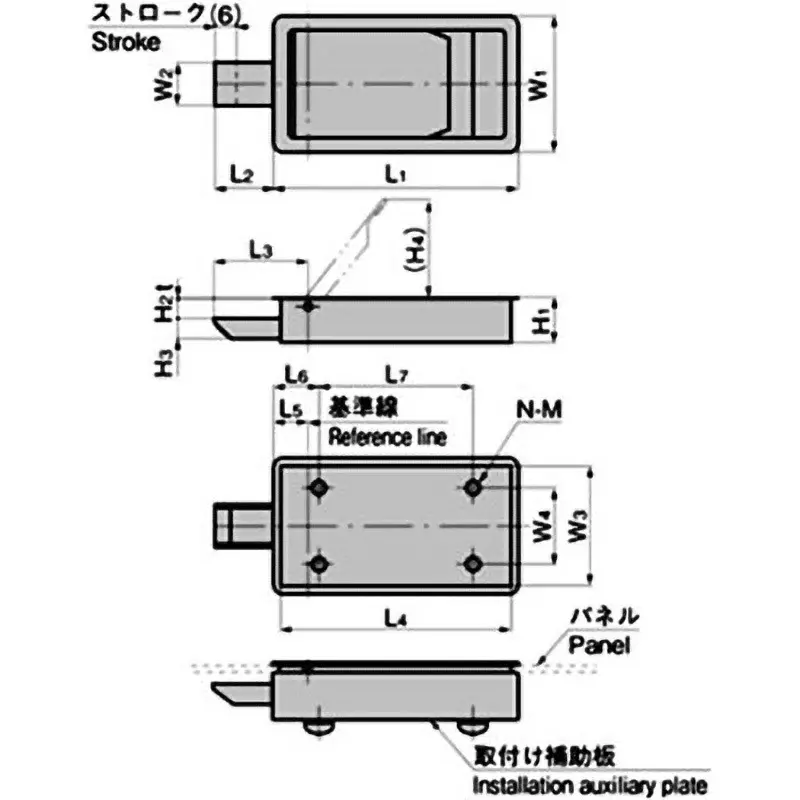

Dimensions L1 (mm) |
35 |
Dimension L3 (mm) |
20.7 |
Dimensions l2 (mm) |
10.7 |
Main Unit Material |
Stainless steel sheet (SUS304) |
Dimensions l4 (mm) |
37 |
Dimensions W2 (mm) |
10 |
Dimension W3 (mm) |
18.2 |
Dimensions H2 (mm) |
5.3 |
Dimensions H1 (mm) |
12.2 |
Dimensions l5 (mm) |
10 |
Dimensions T (mm) |
0.8 |
Dimension H3 (mm) |
5 |
Dimension n (mm) |
2 |
Dimension L6 |
21 mm |
Dimensions M (mm) |
M3 |
Dimension H4 (mm) |
8.5 |
Import Country |
Direct Import from Japan |
