| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

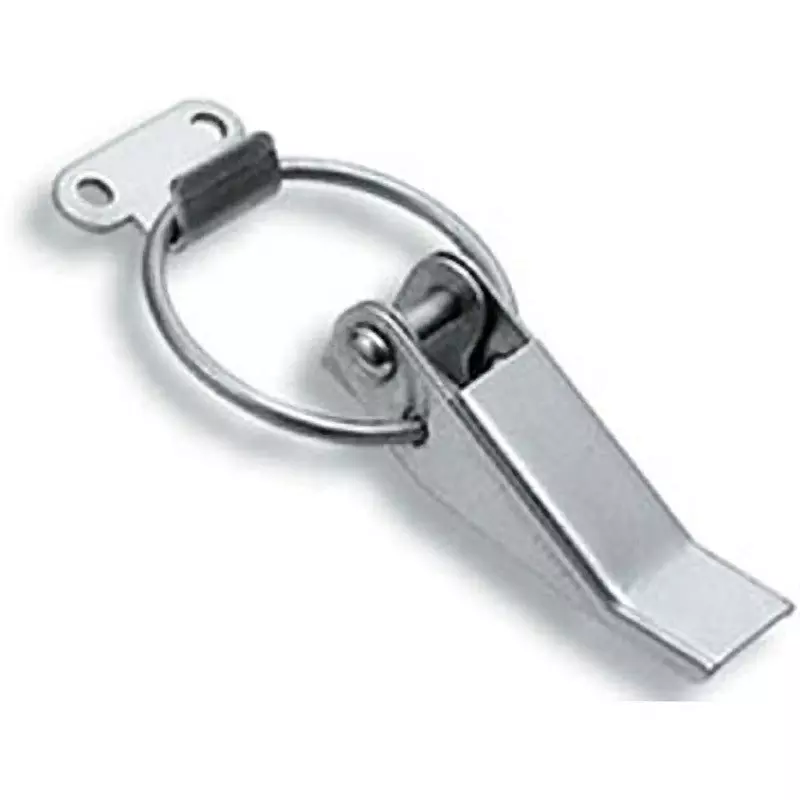

| Type of Product | Spring Snap Lock |
| Model No | C-1150-1 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Spring Snap Lock |
Model No |
C-1150-1 |
Material |
Cold Rolled Stainless Steel Sheet (SUS304) |
Surface Finish Type |
Barrel Polishing |
Monotaro ID |
61125067 |

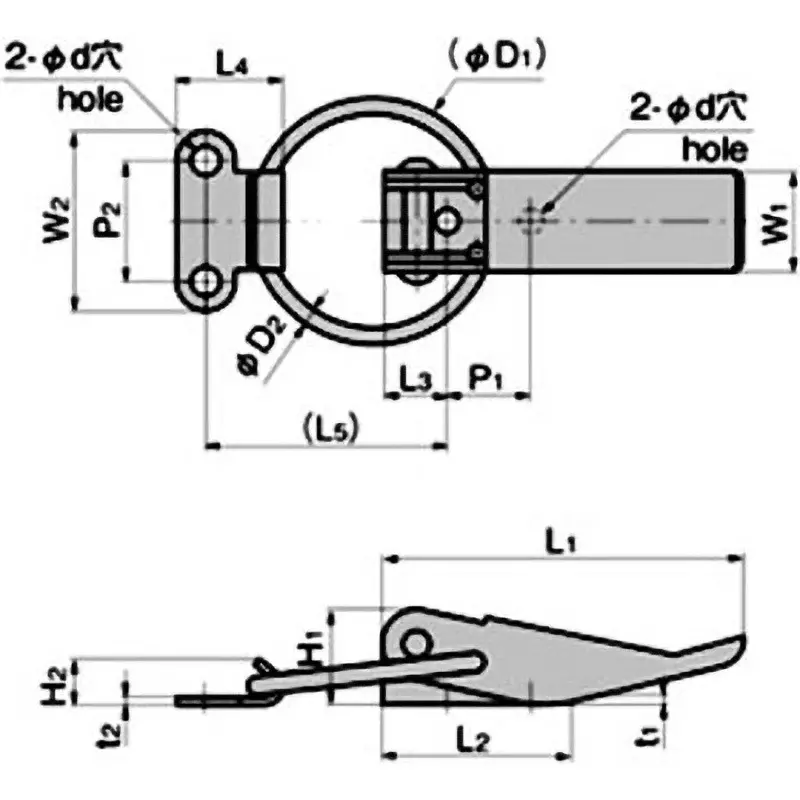

Dimensions L1 (mm) |
72.5 |
Dimension L3 (mm) |
13 |
Dimensions l2 (mm) |
38 |
Dimension t1 (mm) |
1.5 |
Dimensions l4 (mm) |
22.3 |
Dimensions W2 (mm) |
37 |
Dimension t2 (mm) |
2 |
Dimensions W1 (mm) |
21 |
Dimensions H2 (mm) |
11 |
Tensile Load (N) |
50 |
Dimensions H1 (mm) |
19 |
Dimensions l5 (mm) |
52.5 |
Dimension d2 (Φmm) |
3.5 |
Dimension d1 (Φmm) |
54 |
