| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

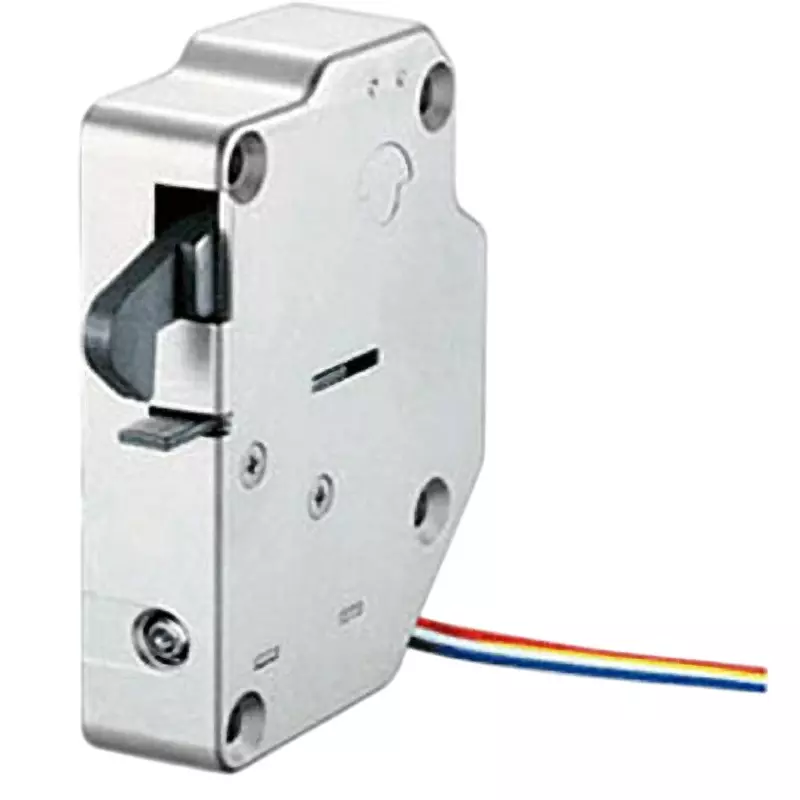

| Type of Product | Electromagnetic Lock |
| Model No | LE-36-DSL |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Electromagnetic Lock |
Model No |
LE-36-DSL |
Material |
Case: Aluminum Die Casting (ADC), Latch / Trigger: Cold Rolled Steel Sheet (SPCC) |
Included Components |
Clasp |
Weight |
180 g |
TAKIGEN Code |
50293 |
Monotaro ID |
62816967 |
Pack of |
1 Pc |
Energization Rate |
100% (Continuous Rating) |
Operation Ambient Temperature |
-5 to +40° (No Freezing) |
Ambient Humidity to Use |
85% RH or less (No Condensation) |
Power Consumption |
About 2.2 W (About 90 mA) (SOL: 80 mA, LED: 10 mA) |
Rating |
Switch: DC30 V/0.1 A (Resistance Load) |
Operating Mechanism |
Locking: By Closing the Door, The Trigger is Pushed and the Latch is Mechanically Locked | Unlocking: When the Solenoid is Energized, the Latch is Unlocked and the Door can be Opened by Pulling the Door Toward You. (Only when energized) |
Rated Voltage |
DC24V±5% |
Import Country |
Direct Import from Japan |
