| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

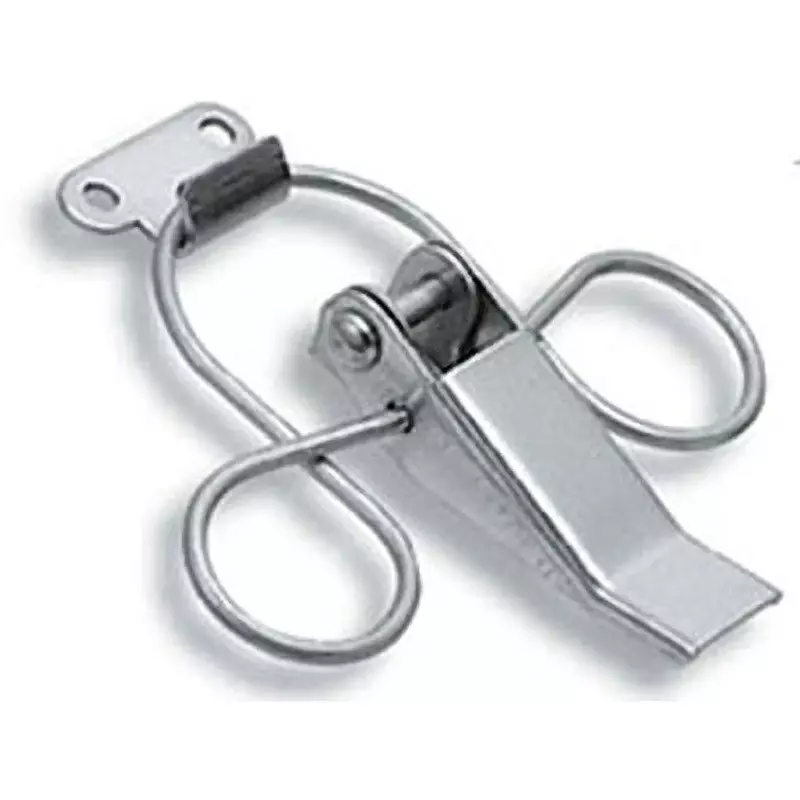

| Type of Product | Spring Snap Lock |
| Model No | C-1149-2 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Spring Snap Lock |
Model No |
C-1149-2 |
Material |
Cold Rolled Stainless Steel Sheet (SUS304) |
Surface Finish Type |
Barrel Polishing |
Monotaro ID |
61125058 |

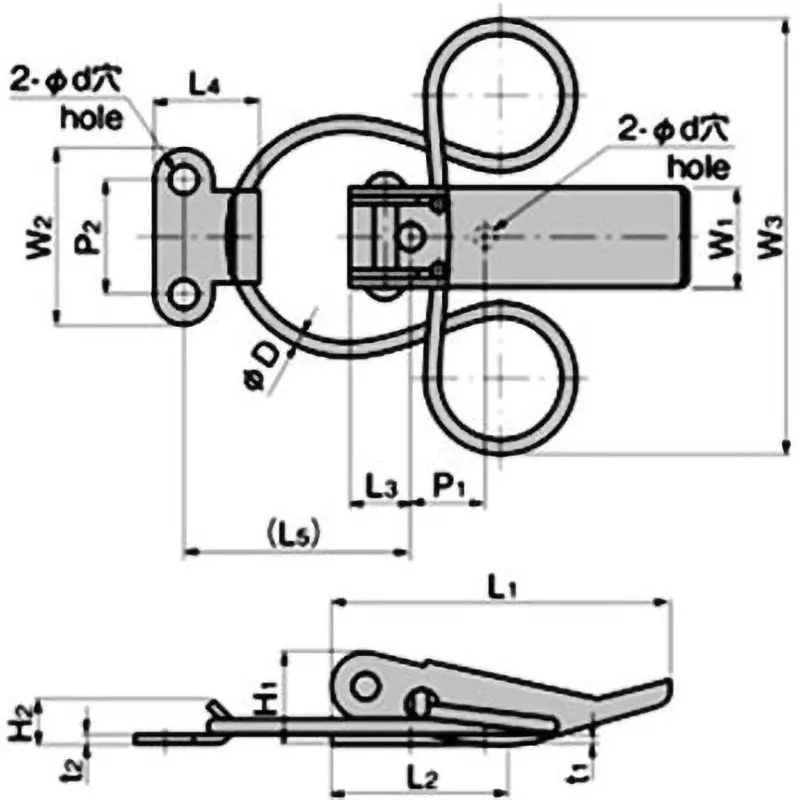

Dimensions L1 (mm) |
52 |
Dimension L3 (mm) |
12 |
Dimensions l2 (mm) |
29 |
Dimension t1 (mm) |
1.5 |
Dimensions l4 (mm) |
17 |
Dimensions W2 (mm) |
26 |
Dimension W3 (mm) |
74 |
Dimension t2 (mm) |
1.5 |
Dimensions W1 (mm) |
16 |
Dimensions H2 (mm) |
9 |
Tensile Load (N) |
39 |
Dimensions H1 (mm) |
15 |
Dimensions l5 (mm) |
38 |
Dimension D (Φmm) |
3 |
