| Country of Origin | JAPAN |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Wireless Snap Lock |
| Model No | C-10-3 |
Country of Origin |
JAPAN |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Wireless Snap Lock |
Model No |
C-10-3 |
Material |
Brass Plate (C2680R) |
Surface Finish Type |
Nickel Plating (MBNi) |
TAKIGEN Code |
20021 |
Monotaro ID |
61114917 |

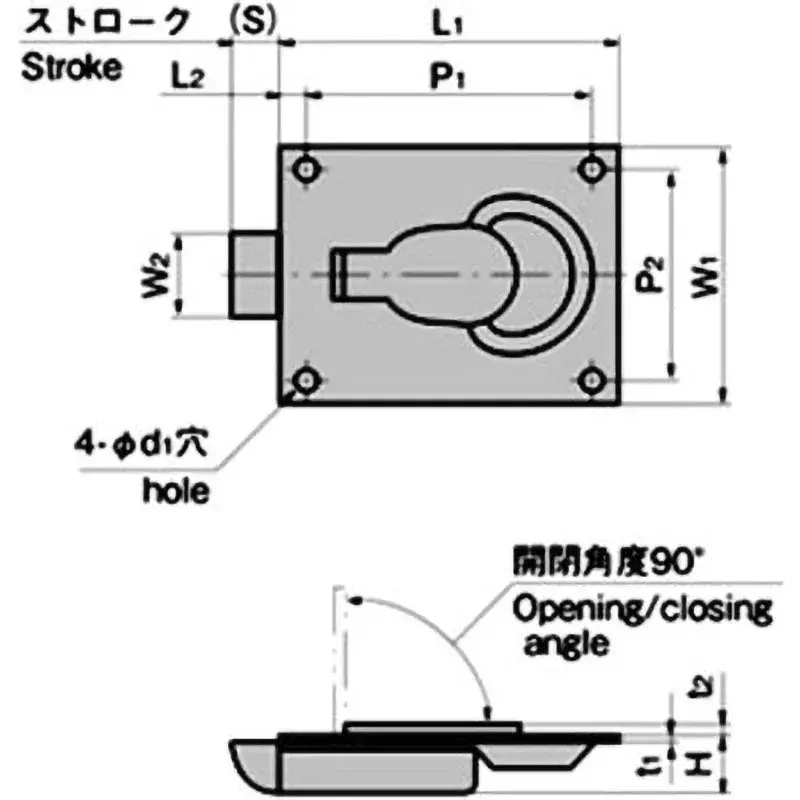

Dimension L3 (mm) |
2.5 mm |
Dimension t1 (mm) |
1.2 mm |
Dimensions W2 (mm) |
9.5 mm |
Dimension W3 (mm) |
6 mm |
Dimension t2 (mm) |
2 mm |
Dimensions W1 (mm) |
26 mm |
Dimension P1 (mm) |
37 mm |
Dimension P2 (mm) |
20 mm |
Import Country |
Japan |
Purpose |
Distribution boards, vending machines, measuring equipment, computers, inspection hatches |
Mass |
28 g |
Dimension L1 |
45 mm |
Dimension L2 |
4 mm |
Dimension L4 |
26.5 mm |
Dimension d1 |
2.5 mm |
Dimension d2 |
3 mm |
Dimension S |
4.5 mm |
Dimension R |
9.5 mm |
Dimension H |
8 mm |
