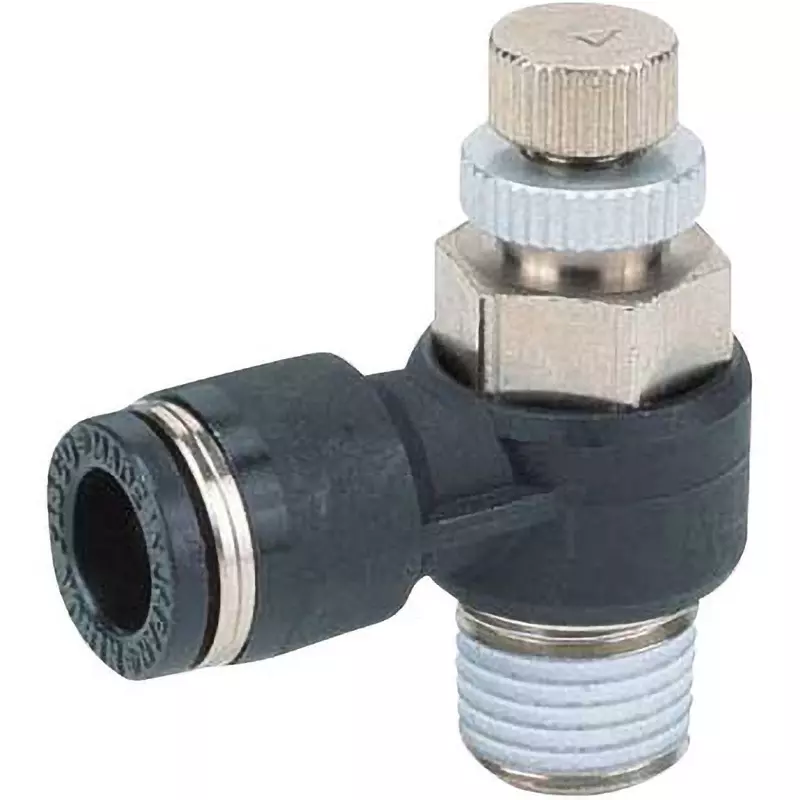

| Type of Product | Speed Controller |
| Model No | JSC1/4-M5A |
| Shape | Elbow Type |
| Country of Origin | JAPAN |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Speed Controller |
Model No |
JSC1/4-M5A |
Shape |
Elbow Type |
Country of Origin |
JAPAN |
Material |
Metal Body: Brass + Nickel Plating, Resin Body: Polybutylene Terephthalate (Pbt), Release Ring: Polyacetal (Pom), Lock Nut: Aluminum, Needle: Brass + Nickel Plating |
Color |
Release Ring, Resin Body: Black |
Dimensions C (mm) |
17 mm |
Dimensions E (mm) |
24 mm |
Dimensions B (mm) |
max: 29.7, min: 27 mm |
Suitable Fluid |
Air |
Monotaro ID |
35313591 |
Operating Temperature Range |
0 to 60℃ |
Weight |
9.5 g |
Operating Pressure Range (MPa) |
0.1 to 0.9 Mpa |
Suitable For |
1/4 mm |
Material Type |
Brass (electroless nickel plating) |
Dimensions L1 (mm) |
max:26.8/min:24.1 mm |
Dimensions l2 (mm) |
8.4 mm |
Dimension X (mm) |
11.8 mm |
Control |
Meter Out |
Dimension R |
M5×0.8 mm |
Dimensions A (mm) |
2.9 mm |
Name of Manufacturer/Packer/Importer |
Pisco Co. Ltd |
