Ships within 19 days
View
View
View
View

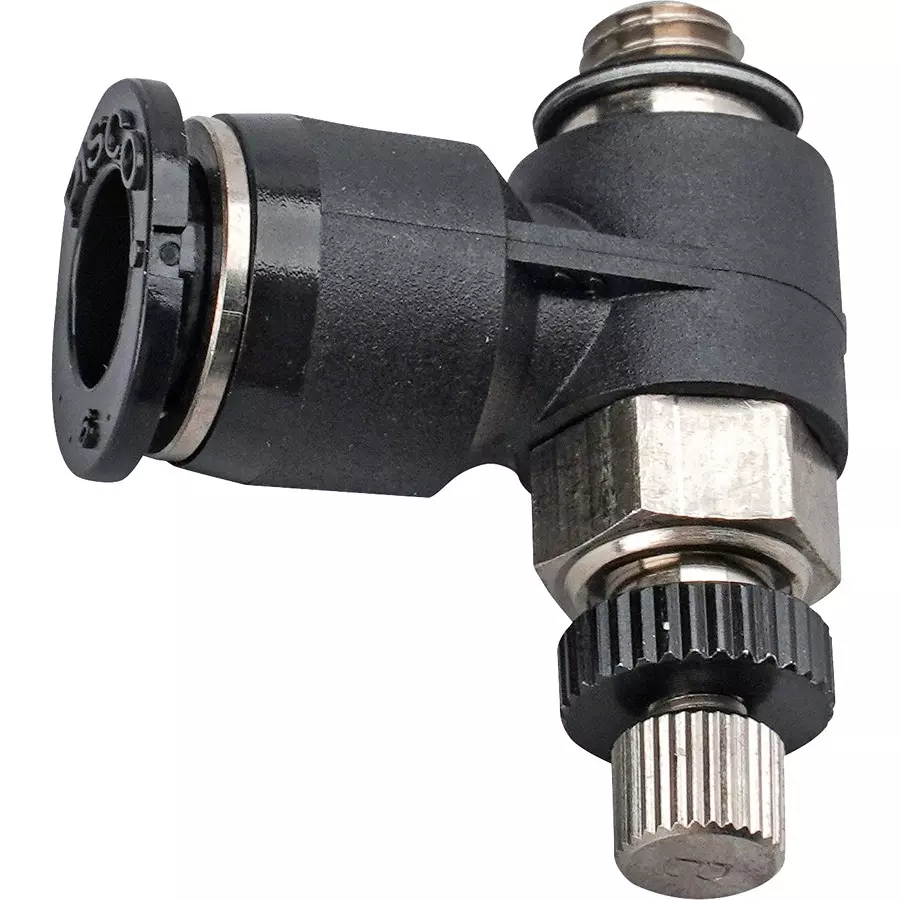

| Type of Product | Speed Controller |
| Model No | JSC6-M5B |
| Shape | Elbow Type |
| Country of Origin | Japan |
Type of Product |
Speed Controller |
Model No |
JSC6-M5B |
Shape |
Elbow Type |
Country of Origin |
Japan |
Material |
Metal Body: Brass + Nickel Plating Resin Body: Polypropylene Terephthalate (Pbt) <Br> Opening Ring: Polyacetal (Pom) <Br> Lock Nut: Aluminum Needle: Brass + Nickel Plating |

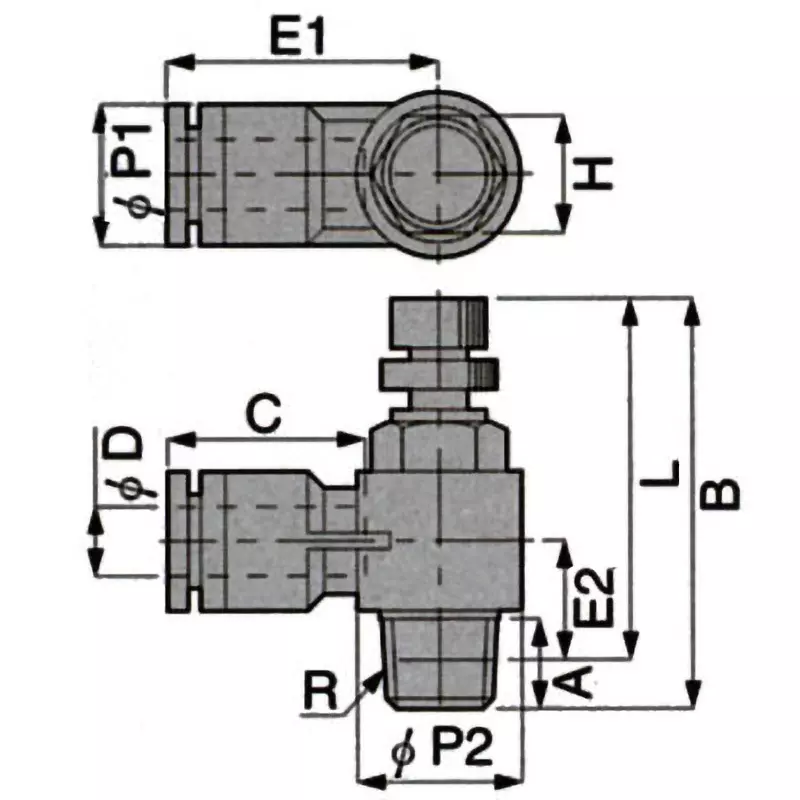

Dimensions C (mm) |
11.6 mm |
Trusco Part No. |
290-8085 |
Dimensions E (mm) |
17.5 mm |
Dimensions B (mm) |
max: 29.7 min: 27 mm |
Suitable Fluid |
Air |
Monotaro ID |
9147643 |
Operating Temperature Range |
0 to 60℃ |
Weight |
7.9 g |
Operating Pressure Range (MPa) |
0 to 0.9 Mpa |
Dimensions L1 (mm) |
max:26.8, min:24.1 mm |
Dimensions l2 (mm) |
7.5 mm |
Dimension X (mm) |
9.8 mm |
Control |
Meter In |
Dimension Y (mm) |
11.8 mm |
Dimensions A (mm) |
2.9 mm |
Dimension |
M5×0.8 |
Suitable Screw |
M5×0.8 |
Pressure |
Check valve operation: 0.05 MPa |
Name of Manufacturer/Packer/Importer |
Pisco Co. Ltd |
Import Country |
Direct Import from Japan |
