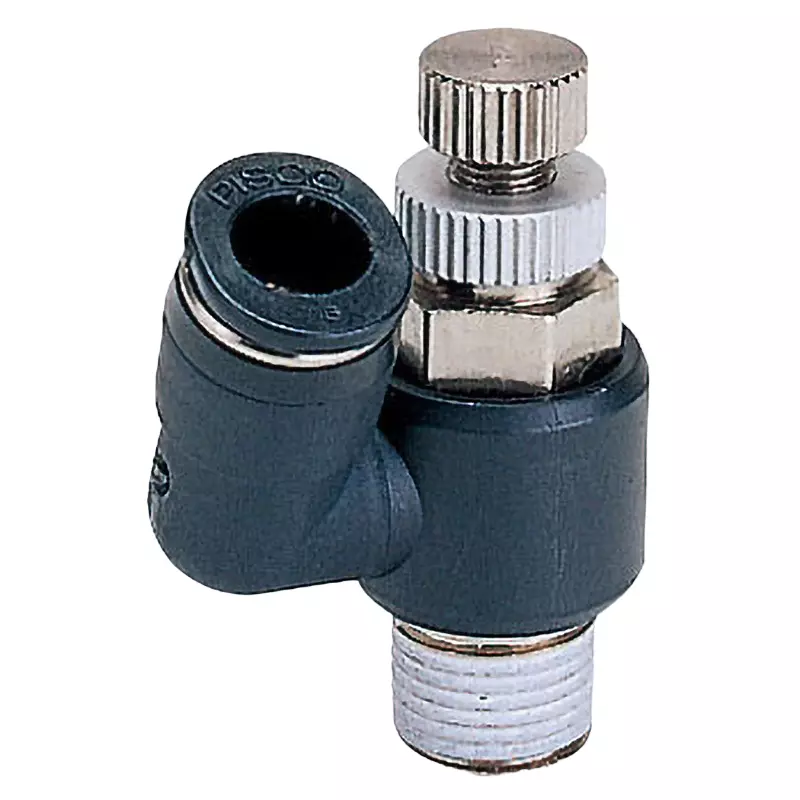

| Type of Product | Speed Controller |
| Model No | JSS5/16-02A |
| Shape | Free Type |
| Country of Origin | JAPAN |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Speed Controller |
Model No |
JSS5/16-02A |
Shape |
Free Type |
Country of Origin |
JAPAN |
Material |
Metal Body: Brass + Nickel Plating, Resin Body: Polybutylene Terephthalate (Pbt), Release Ring: Polyacetal (Pom), Lock Nut: Aluminum, Needle: Brass + Nickel Plating |
Color |
Resin Body: Black, Lock Nut: Silver, Release Ring: Black |

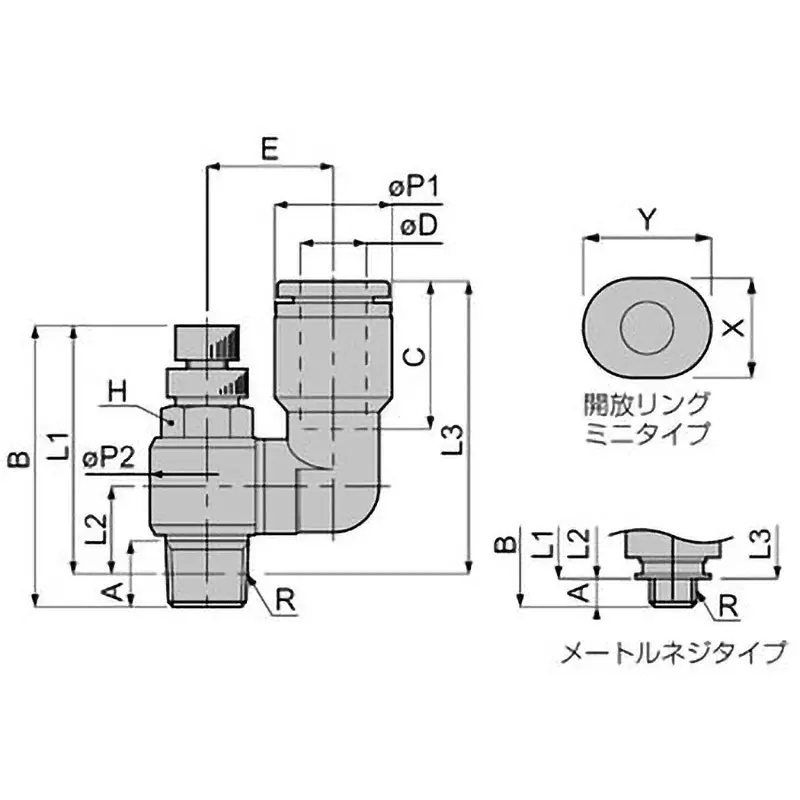

Dimensions C (mm) |
18.1 mm |
Dimensions E (mm) |
17.5 mm |
Dimensions B (mm) |
max/47.8 min/41.4 mm |
Suitable Fluid |
Air |
Monotaro ID |
35313677 |
Operating Temperature Range |
0 to 60℃ |
Weight |
39 g |
Operating Pressure Range (MPa) |
0 to 0.9 Mpa |
Dimensions L1 (mm) |
MAX/41.8 MIN/35.4 mm |
Dimensions l2 (mm) |
11.9 mm |
Dimension X (mm) |
13.8 mm |
Control |
Meter Out |
Dimension R |
R1/4 mm |
Dimensions A (mm) |
11.1 mm |
Dimension L3 (mm) |
37.6 mm |
Dimension P2 (mm) |
14.5 mm |
Dimension P |
18.4 mm |
Name of Manufacturer/Packer/Importer |
Pisco Co. Ltd |
Import Country |
Direct Import from Japan |
