| Type of Product | Separate Type Roller Follower NAST ZZR (Shielded Type, With Inner Ring, Spherical Outer Ring) |
| Model No | NAST12ZZR |
| Inner Diameter | 12 mm |
| Country of Origin | Japan |
Type of Product |
Separate Type Roller Follower NAST ZZR (Shielded Type, With Inner Ring, Spherical Outer Ring) |
Model No |
NAST12ZZR |
Inner Diameter |
12 mm |
Country of Origin |
Japan |
Monotaro ID |
10301471 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
NAST-ZZR |
Specifications |
1N≒0.102kgf |
Mass (g) |
75 g |

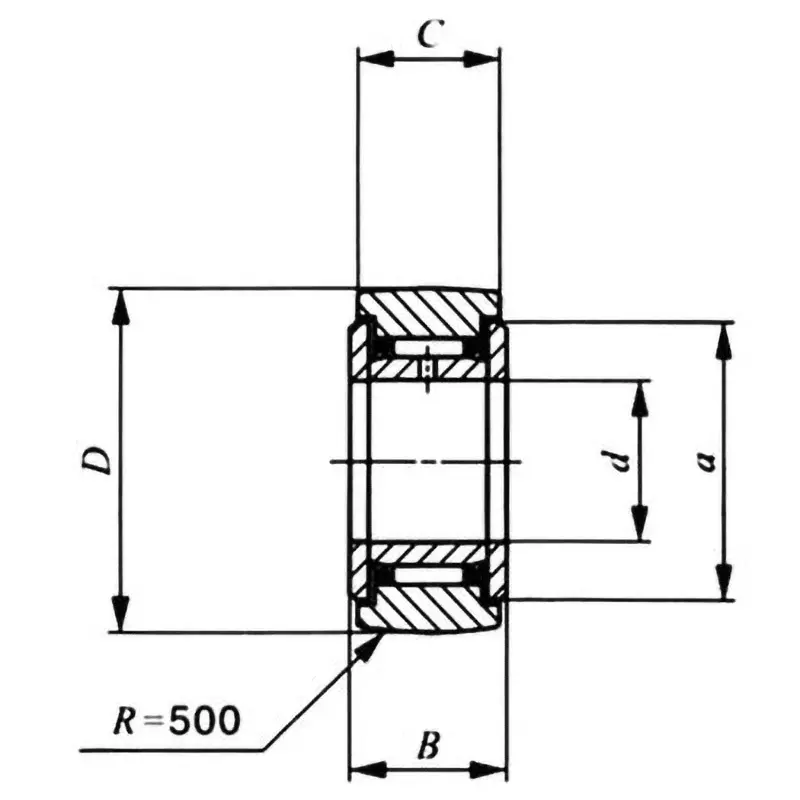

Dimensions B (mm) |
16 |
Dimensions D (mm) |
12 |
Outer Diameter (Φmm) |
32 |
Dimensions C (mm) |
15.8 |
Basic Dynamic Load Rating (N) |
10500 |
Basic Static Load Rating (N) |
10900 |
Dimensions E (mm) |
2.5 |
Dimensions F (mm) |
0.8 |
Dimensions A (mm) |
25.5 |
