| Type of Product | Non-Separable Roller Follower NARTR (Shielded Type, With Cage, Spherical Outer Ring) |
| Model No | NART15R |
| Inner Diameter | 15 mm |
| Country of Origin | Japan |
Type of Product |
Non-Separable Roller Follower NARTR (Shielded Type, With Cage, Spherical Outer Ring) |
Model No |
NART15R |
Inner Diameter |
15 mm |
Country of Origin |
Japan |
Monotaro ID |
10301882 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
NART-R |
Specifications |
1N≒0.102kgf |
Mass (g) |
102 g |

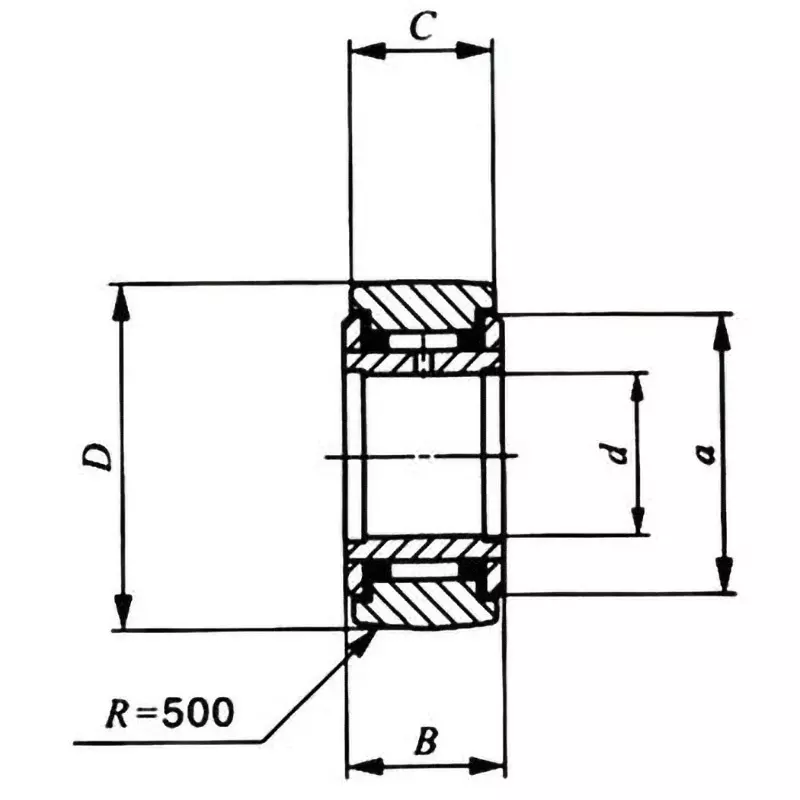

Dimensions B (mm) |
19 |
Dimensions D (mm) |
15 |
Outer Diameter (Φmm) |
35 |
Dimensions C (mm) |
18 |
Basic Dynamic Load Rating (N) |
13700 |
Basic Static Load Rating (N) |
16400 |
Dimensions A (mm) |
29 |
Maximum allowable static load (N) |
16400 |
