| Type of Product | Non-Separable Type Roller Follower NARTVR (Shielded Type, Full Roller, Spherical Outer Ring) |
| Model No | NART8VR |
| Inner Diameter | 8 mm |
| Country of Origin | Japan |
Type of Product |
Non-Separable Type Roller Follower NARTVR (Shielded Type, Full Roller, Spherical Outer Ring) |
Model No |
NART8VR |
Inner Diameter |
8 mm |
Country of Origin |
Japan |
Monotaro ID |
10301995 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
NART-VR |
Specifications |
1N≒0.102kgf |
Mass (g) |
42.5 g |

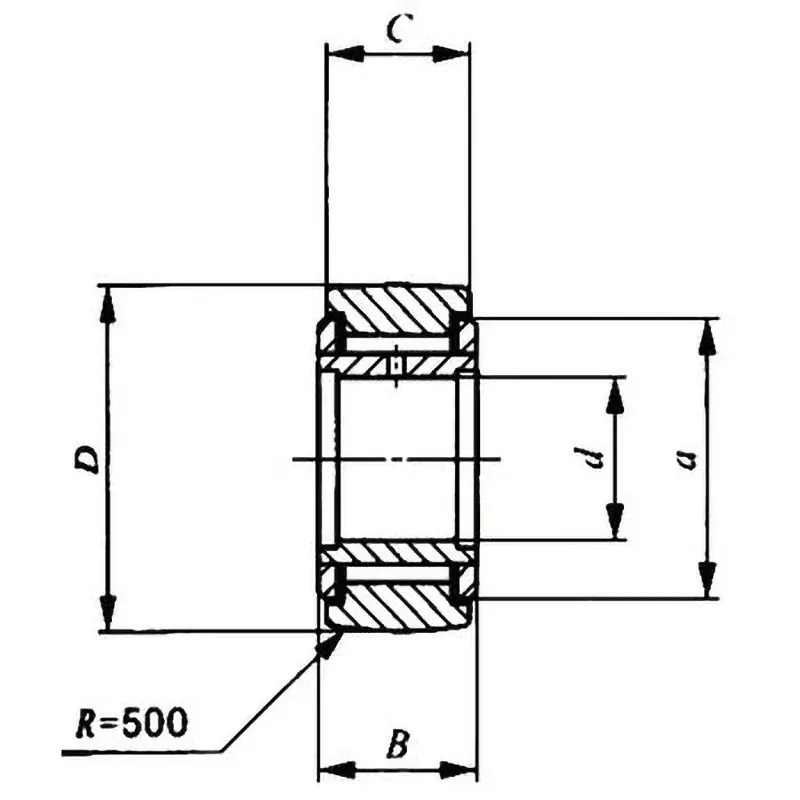

Dimensions B (mm) |
15 |
Dimensions D (mm) |
8 |
Outer Diameter (Φmm) |
24 |
Dimensions C (mm) |
14 |
Basic Dynamic Load Rating (N) |
11800 |
Basic Static Load Rating (N) |
15600 |
Dimensions A (mm) |
17.5 |
Maximum allowable static load (N) |
15600 |
