| Type of Product | Separate Type Roller Follower NASTR (Open Type, With Inner Ring, Spherical Outer Ring) |
| Model No | NAST15R |
| Inner Diameter | 15 mm |
| Country of Origin | Japan |
Type of Product |
Separate Type Roller Follower NASTR (Open Type, With Inner Ring, Spherical Outer Ring) |
Model No |
NAST15R |
Inner Diameter |
15 mm |
Country of Origin |
Japan |
Chamfer Dimension r1 (mm) |
0.3 |
Monotaro ID |
10301067 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
NAST-R |
Specifications |
1N≒0.102kgf |
Mass (g) |
62 g |
Nominal No. |
15 |

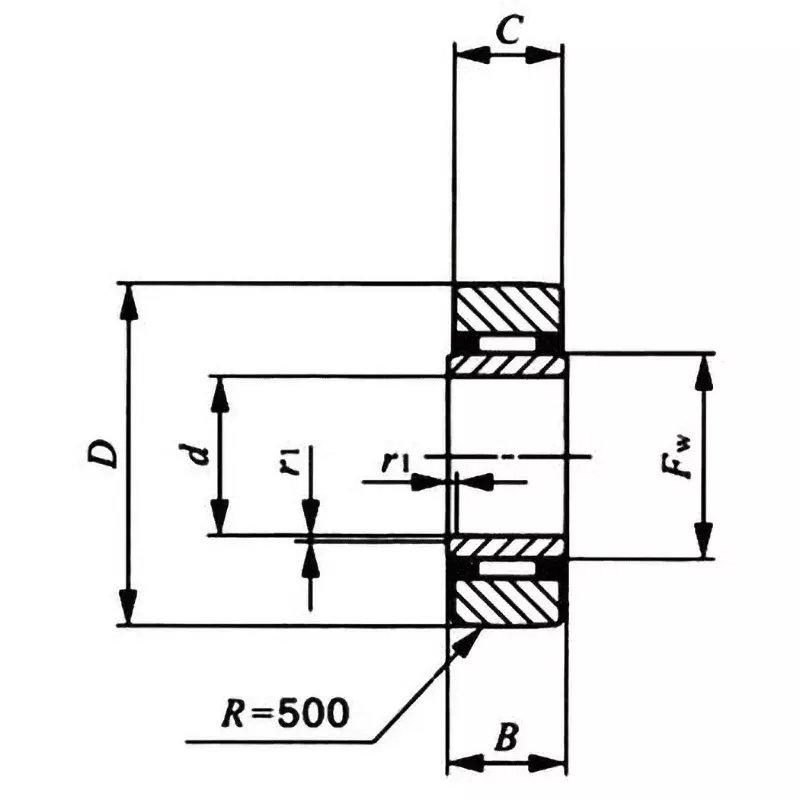

Dimensions B (mm) |
12 |
Chamfer Dimension r (mm) |
1 |
Dimensions D (mm) |
15 |
Outer Diameter (Φmm) |
35 |
Dimensions C (mm) |
11.8 |
Basic Dynamic Load Rating (N) |
12400 |
Basic Static Load Rating (N) |
14300 |
Dimension Fw (mm) |
20 |
Inner ring |
With inner ring |
