| Type of Product | Separate Type Roller Follower RNAST R (Open Type, No Inner Ring, Spherical Outer Ring) |
| Model No | RNAST25R |
| Inner Diameter | 30 mm |
| Country of Origin | Japan |
Type of Product |
Separate Type Roller Follower RNAST R (Open Type, No Inner Ring, Spherical Outer Ring) |
Model No |
RNAST25R |
Inner Diameter |
30 mm |
Country of Origin |
Japan |
Monotaro ID |
10301234 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
RNAST-R |
Specifications |
1N≒0.102kgf |
Mass (g) |
152 g |
Nominal No. |
25 |

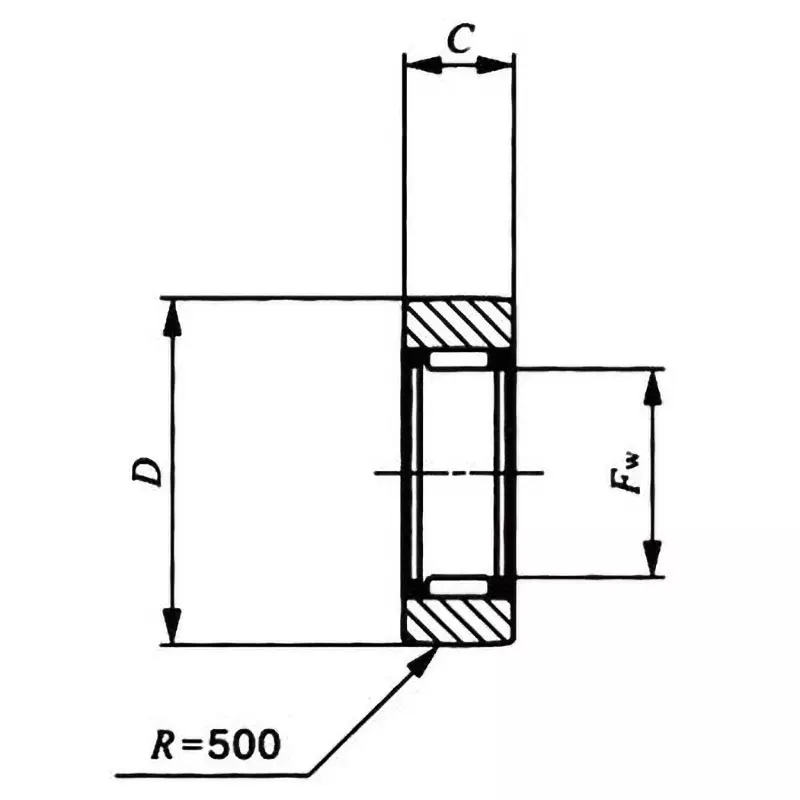

Chamfer Dimension r (mm) |
1 |
Dimensions D (mm) |
52 |
Outer Diameter (Φmm) |
52 |
Dimensions C (mm) |
15.8 |
Basic Dynamic Load Rating (N) |
20800 |
Basic Static Load Rating (N) |
28400 |
Dimension Fw (mm) |
30 |
Inner ring |
None |
