| Type of Product | Separate Type Roller Follower RNAST R (Open Type, No Inner Ring, Spherical Outer Ring) |
| Model No | RNAST8R |
| Inner Diameter | 12 mm |
| Country of Origin | Japan |
Type of Product |
Separate Type Roller Follower RNAST R (Open Type, No Inner Ring, Spherical Outer Ring) |
Model No |
RNAST8R |
Inner Diameter |
12 mm |
Country of Origin |
Japan |
Monotaro ID |
10301173 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
RNAST-R |
Specifications |
1N≒0.102kgf |
Mass (g) |
23.5 g |
Nominal No. |
8 |

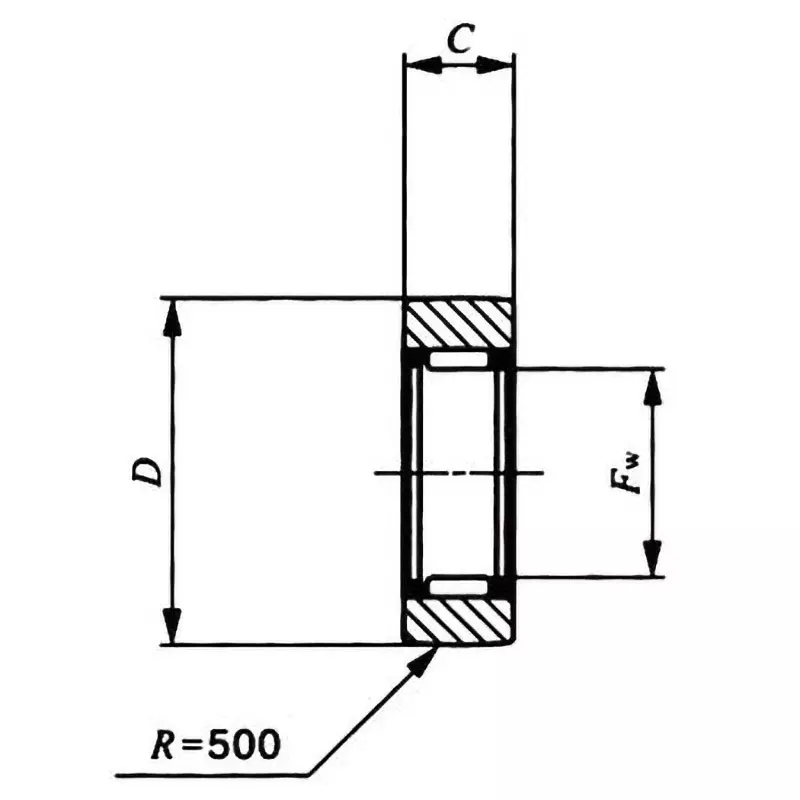

Chamfer Dimension r (mm) |
0.6 |
Dimensions D (mm) |
24 |
Outer Diameter (Φmm) |
24 |
Dimensions C (mm) |
9.8000000000000007 |
Basic Dynamic Load Rating (N) |
5650 |
Basic Static Load Rating (N) |
5890 |
Dimension Fw (mm) |
12 |
Inner ring |
None |
