| Type of Product | Double Row Cylindrical Roller Follower NURT R (Spherical Outer Ring) |
| Model No | NURT40-1R |
| Inner Diameter | 40 mm |
| Country of Origin | Japan |
Type of Product |
Double Row Cylindrical Roller Follower NURT R (Spherical Outer Ring) |
Model No |
NURT40-1R |
Inner Diameter |
40 mm |
Country of Origin |
Japan |
Chamfer Dimension r1 (mm) |
0.6 |
Monotaro ID |
10302521 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
1.13 Kg |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
NURT-R |
Specifications |
1N≒0.102kgf |
Mass (g) |
1130 |

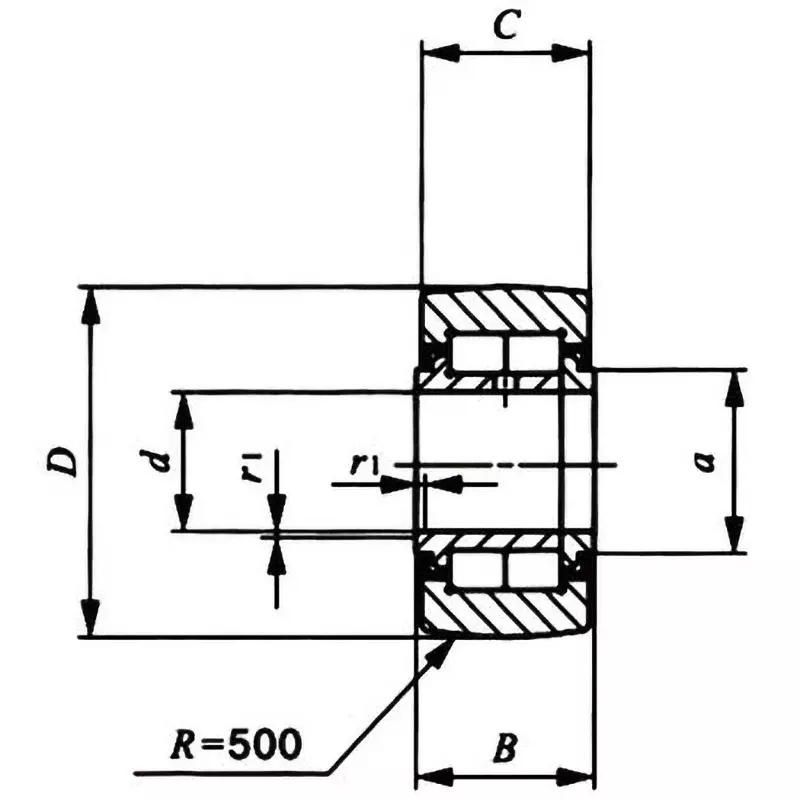

Dimensions B (mm) |
32 |
Chamfer Dimension r (mm) |
1 |
Dimensions D (mm) |
40 |
Outer Diameter (Φmm) |
90 |
Dimensions C (mm) |
30 |
Basic Dynamic Load Rating (N) |
85600 |
Basic Static Load Rating (N) |
122000 |
Dimensions A (mm) |
49 |
Maximum allowable static load (N) |
122000 |
