| Type of Product | Separate Type Roller Follower NASTR (Open Type, With Inner Ring, Spherical Outer Ring) |
| Model No | NAST40R |
| Inner Diameter | 40 mm |
| Country of Origin | Japan |
Type of Product |
Separate Type Roller Follower NASTR (Open Type, With Inner Ring, Spherical Outer Ring) |
Model No |
NAST40R |
Inner Diameter |
40 mm |
Country of Origin |
Japan |
Chamfer Dimension r1 (mm) |
1 |
Monotaro ID |
10301121 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
NAST-R |
Specifications |
1N≒0.102kgf |
Mass (g) |
530 g |
Nominal No. |
40 |

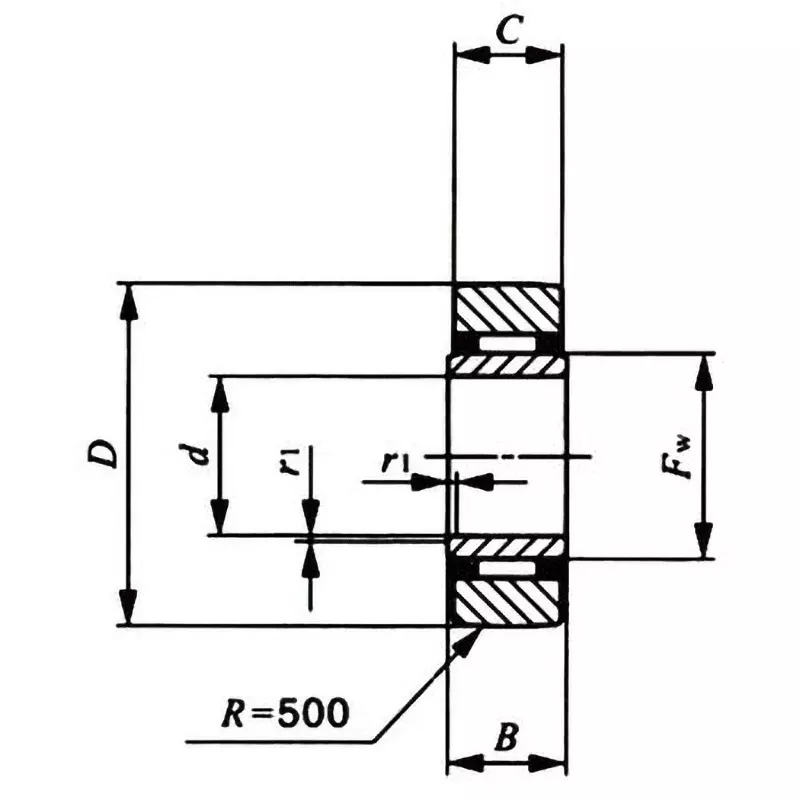

Dimensions B (mm) |
20 |
Chamfer Dimension r (mm) |
1.5 |
Dimensions D (mm) |
40 |
Outer Diameter (Φmm) |
80 |
Dimensions C (mm) |
19.8 |
Basic Dynamic Load Rating (N) |
35900 |
Basic Static Load Rating (N) |
61100 |
Dimension Fw (mm) |
50 |
Inner ring |
With inner ring |
