| Type of Product | Non-Separable Roller Follower NARTR (Shielded Type, With Cage, Spherical Outer Ring) |
| Model No | NART17R |
| Inner Diameter | 17 mm |
| Country of Origin | Japan |
Type of Product |
Non-Separable Roller Follower NARTR (Shielded Type, With Cage, Spherical Outer Ring) |
Model No |
NART17R |
Inner Diameter |
17 mm |
Country of Origin |
Japan |
Monotaro ID |
10301891 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Type |
NART-R |
Specifications |
1N≒0.102kgf |
Mass (g) |
149 g |

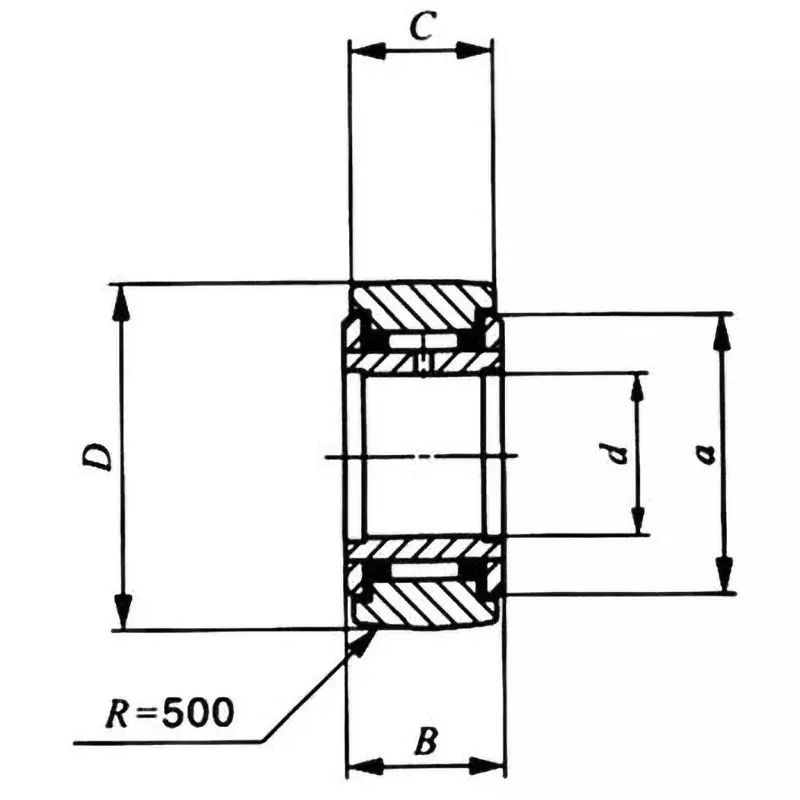

Dimensions B (mm) |
21 |
Dimensions D (mm) |
17 |
Outer Diameter (Φmm) |
40 |
Dimensions C (mm) |
20 |
Basic Dynamic Load Rating (N) |
17600 |
Basic Static Load Rating (N) |
21000 |
Dimensions A (mm) |
32.5 |
Maximum allowable static load (N) |
21000 |
