Ships within 25 days
View
View
View
View
| Type of Product | Spherical Roller Bearings 23000 Series |
| Material | High Carbon Steel |
| Model No | 23122CAME4S11 |
| Country of Origin | Japan |
Type of Product |
Spherical Roller Bearings 23000 Series |
Material |
High Carbon Steel |
Model No |
23122CAME4S11 |
Country of Origin |
Japan |
Load direction |
Radial |
Rolling element material |
High Carbon Chromium Bearing Steel |
JIS grade |
0 |
Outer ring type |
Flat |
No. of Track Trains |
Single row |
Shield Shape |
Open type |
Race ring shape |
Spherical Roller Bearing |

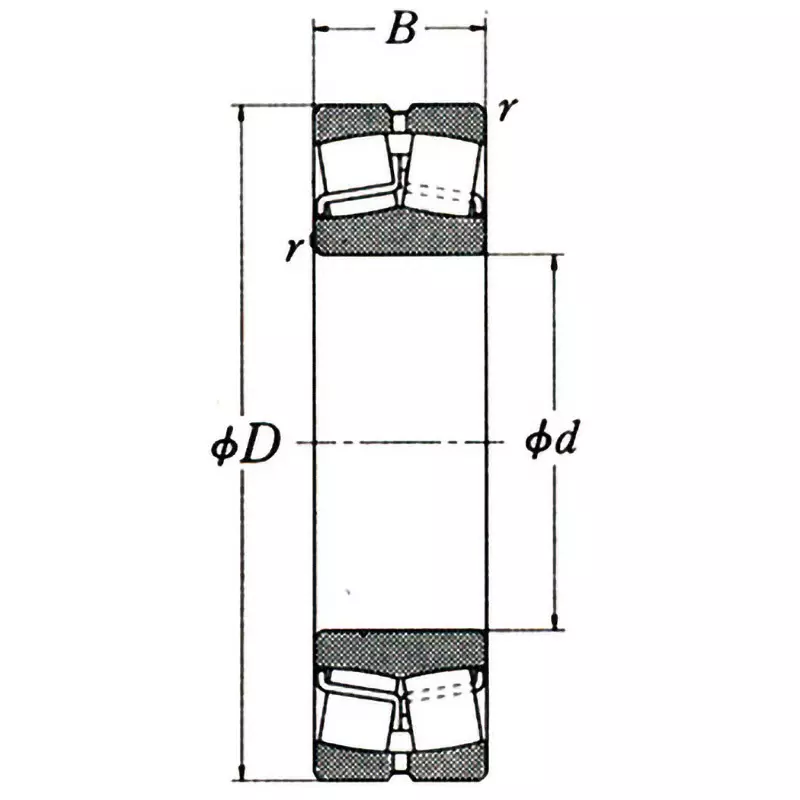

Width B (mm) |
56 |
Monotaro ID |
32997526 |
Outer Diameter D (Φmm) |
180 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
110 |
Mass (g) |
5700 |
Chamfer Dimension r (mm) |
2 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
1600 |
Operating Limit Temperature |
(Dimension stabilization processing) 200℃ or less |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
2000 |
Basic load rating Cor (N) |
630000 |
Basic load rating Cr (N) |
385000 |
