| Type of Product | Spherical Roller Bearing Cylindrical Bore 22200 Series |
| Material | High Carbon Chromium Bearing Steel |
| Model No | 22212EAE4C3 |
| Country of Origin | Japan |
Type of Product |
Spherical Roller Bearing Cylindrical Bore 22200 Series |
Material |
High Carbon Chromium Bearing Steel |
Model No |
22212EAE4C3 |
Country of Origin |
Japan |
Load direction |
Radial |
Rolling element material |
High carbon chromium bearing steel |
JIS grade |
0 |
Outer ring type |
Flat |

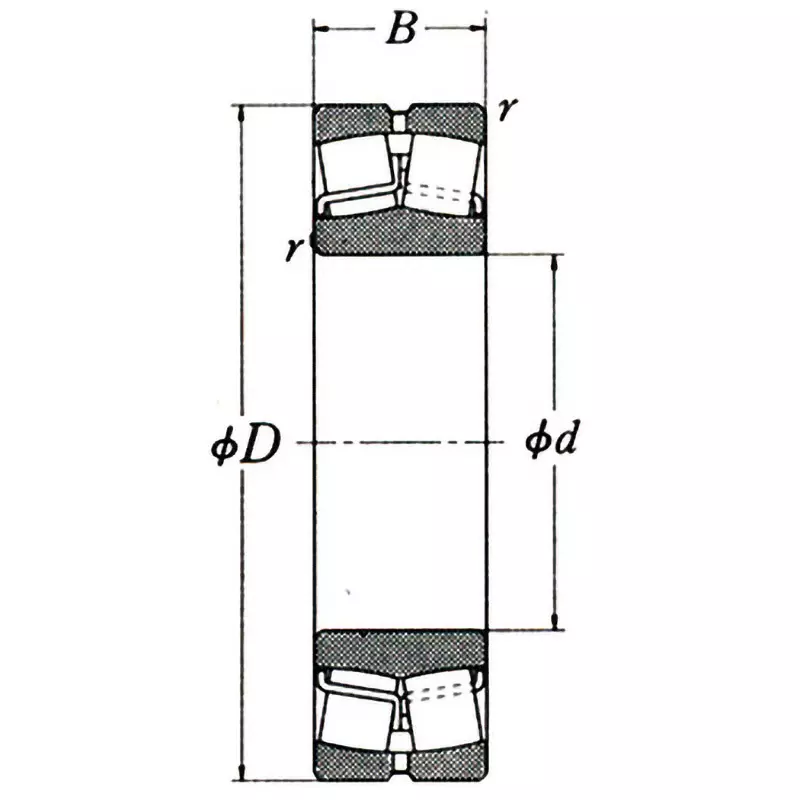

Inner Diameter d (Φmm) |
60 |
No. of Track Trains |
Single row |
Shield Shape |
Open type |
Race ring shape |
Spherical roller bearing |
Width B (mm) |
28 |
Monotaro ID |
32996984 |
Outer Diameter D (Φmm) |
110 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
1.1 Kg |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Mass (g) |
1100 |
Chamfer Dimension r (mm) |
1.5 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
4800 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
6000 |
Basic load rating Cor (N) |
174000 |
Basic load rating Cr (N) |
178000 |
Symbol of Internal Clearance Preload |
C3 |
