| Type of Product | Cross Roller Table |
| Model No | VRT3130 |
| Country of Origin | Japan |
| Monotaro ID | 75104136 |
Type of Product |
Cross Roller Table |
Model No |
VRT3130 |
Country of Origin |
Japan |
Monotaro ID |
75104136 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
(Nut) 0.11 |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |

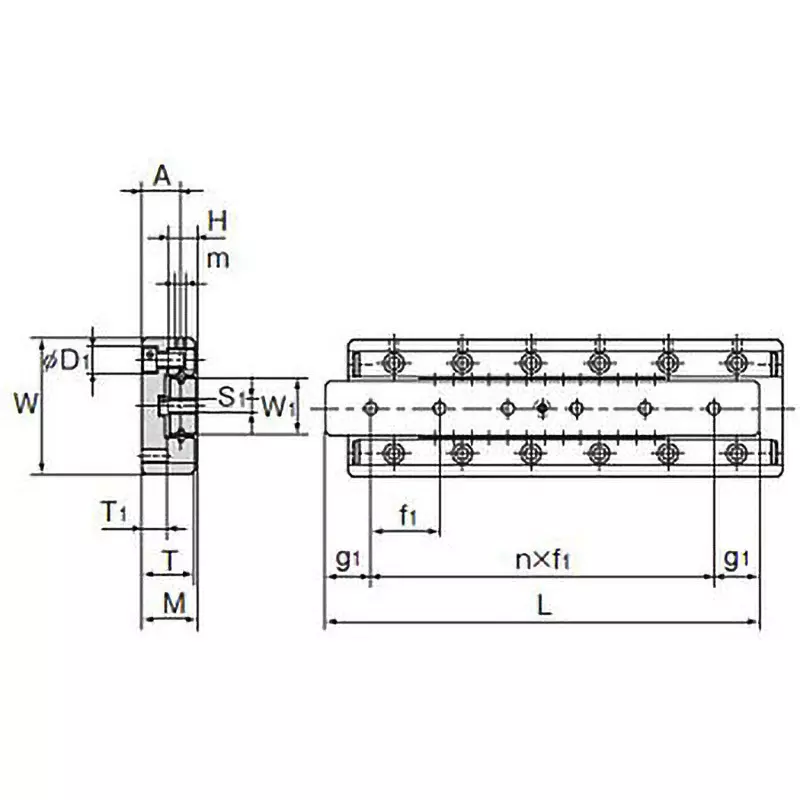

Dimension B1 (mm) |
28.4 |
Dimension B (Φmm) |
30 |
Type |
Base Tap VRT Type |
Dimension A (Φmm) |
11.5 |
Basic Static Load Rating (kN) |
9.77 |
Basic Dynamic Load Rating (kN) |
5.87 |
Dimension H (Φmm) |
8 |
Dimension S |
M4 mm |
Mass (kg/m) |
(Axis) 0.36 |
Dimension M |
M2 mm |
Dimension T |
15.5 mm |
Dimension G |
27.5 mm |
Mass (g) |
551 |
Dimension d1 (Φmm) |
7.5 |
Dimension L (mm) |
130 |
Dimension W1 (mm) |
16 |
Dimension t1 (mm) |
7.5 |
Table Height |
15.5 mm |
Dimension W |
40 mm |
