| Type of Product | Cross Roller Ring |
| Model No | RU85C0 |
| Country of Origin | Japan |
| Inner Diameter d (Φmm) | 55 |
Type of Product |
Cross Roller Ring |
Model No |
RU85C0 |
Country of Origin |
Japan |
Inner Diameter d (Φmm) |
55 |
Monotaro ID |
75112396 |
Outer Diameter D (Φmm) |
120 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
1 |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Shank Diameter (Φmm) |
55 |
Dimension B (Φmm) |
15 |
Dimension R |
0.6 mm |
Type |
RU Type |
Basic Static Load Rating (kN) |
29.5 |
Basic Dynamic Load Rating (kN) |
20.3 |
Dimension ds (mm) |
77 |
Dimension d |
93 mm |

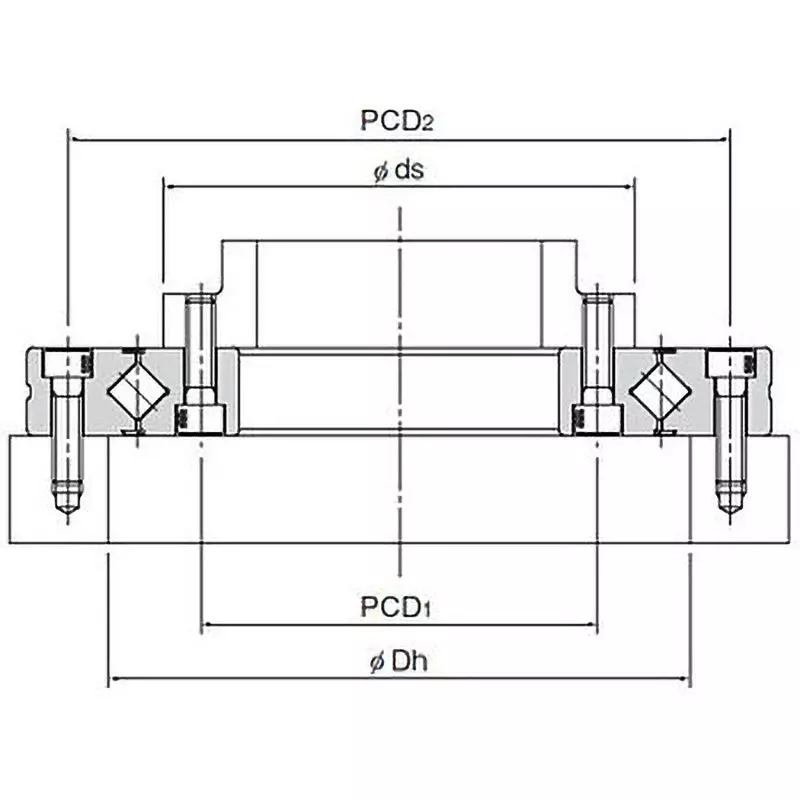

Pitch Circle Diameter |
85 mm |
Special Features |
Integrated Inner And Outer Rings |
Mounting Hole PCD1 (mm) |
65 |
Mounting Hole PCD2 (mm) |
105 |
Dimension D1 (mm) |
3.1 |
