| Type of Product | Cross Roller Table |
| Model No | VRU3055 |
| Country of Origin | Japan |
| Monotaro ID | 75104522 |
Type of Product |
Cross Roller Table |
Model No |
VRU3055 |
Country of Origin |
Japan |
Monotaro ID |
75104522 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
0.56999999999999995 |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Dimension B1 (mm) |
40 |
Dimension B (Φmm) |
25 |
Type |
VRU Type |
Dimension A (Φmm) |
14.5 |
Basic Static Load Rating (kN) |
3.67 |
Basic Dynamic Load Rating (kN) |
2.71 |
Dimension H (Φmm) |
9 |
Dimension S |
M4 mm |
Mass (kg/m) |
(Axis) 0.71 |
Dimension T |
18.5 mm |
Maximum Stroke Length |
30 mm |
Dimension G |
27.5 mm |
Dimension d1 (Φmm) |
7.5 |
Dimension L (mm) |
55 |
Table Height |
18.5 mm |
Dimension W |
60 mm |
Dimension K |
10 mm |

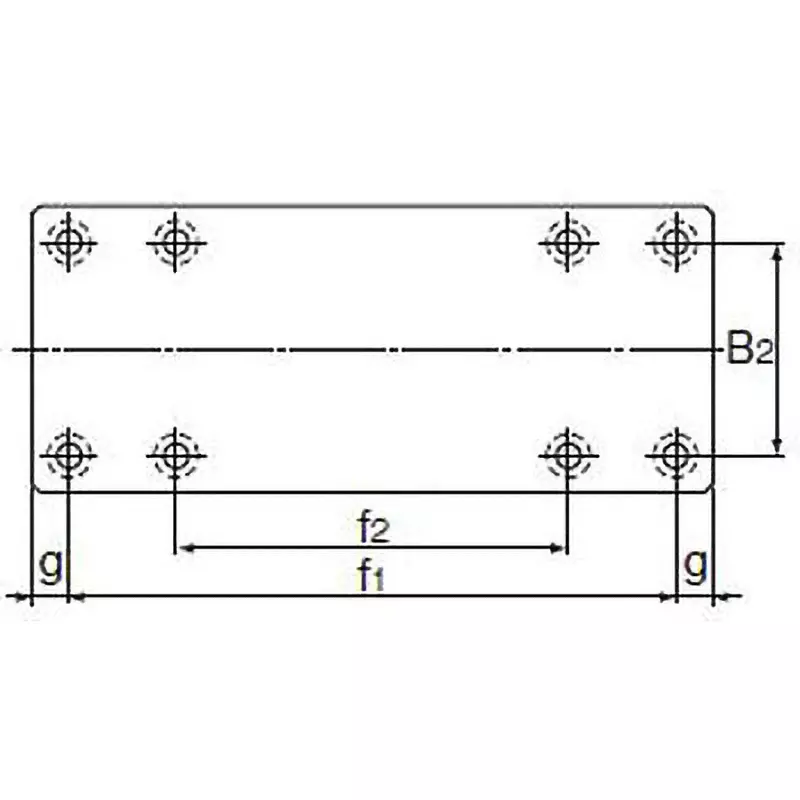

Dimension B2 |
40 mm |
