| Type of Product | Cross Roller Ring |
| Model No | RU228UUC0 |
| Country of Origin | Japan |
| Inner Diameter d (Φmm) | 160 |
Type of Product |
Cross Roller Ring |
Model No |
RU228UUC0 |
Country of Origin |
Japan |
Inner Diameter d (Φmm) |
160 |
Monotaro ID |
75112651 |
Outer Diameter D (Φmm) |
295 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
11.4 |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Shank Diameter (Φmm) |
160 |
Dimension B (Φmm) |
35 |
Dimension R |
2 mm |
Type |
RU Type |
Basic Static Load Rating (kN) |
173 |
Basic Dynamic Load Rating (kN) |
104 |
Dimension ds (mm) |
208 |
Dimension d |
246 mm |

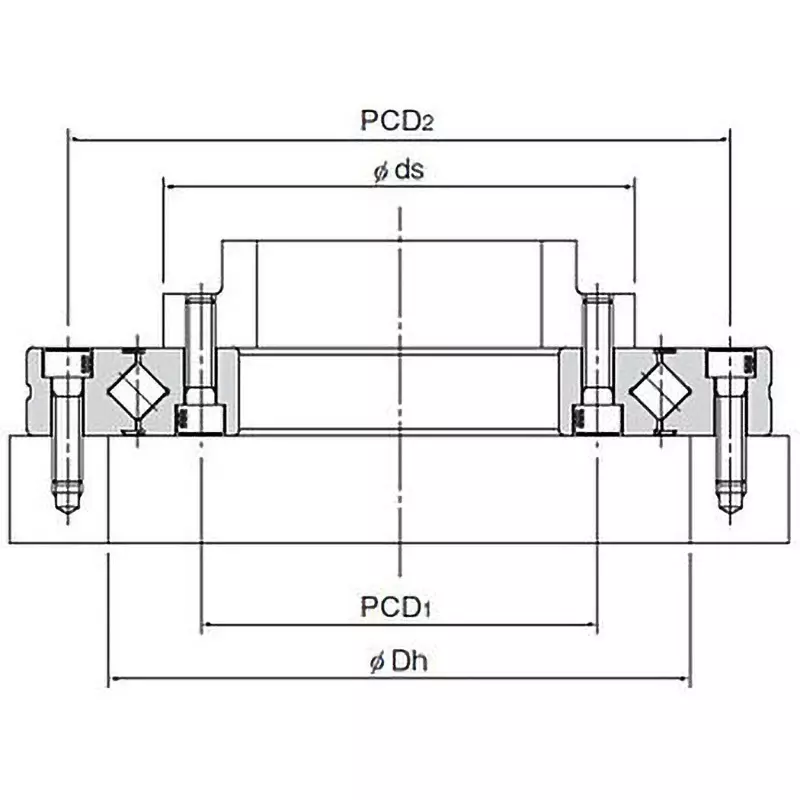

Pitch Circle Diameter |
227.5 mm |
Special Features |
Integrated Inner And Outer Rings with Seals On Both Sides |
Mounting Hole PCD1 (mm) |
184 |
Mounting Hole PCD2 (mm) |
270 |
Dimension D1 (mm) |
6 |
