Ships within 25 days
View
View
View
View
| Type of Product | Cross Roller Table |
| Model No | VRU4205 |
| Country of Origin | Japan |
| Monotaro ID | 75104696 |
Type of Product |
Cross Roller Table |
Model No |
VRU4205 |
Country of Origin |
Japan |
Monotaro ID |
75104696 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
3.8 |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |

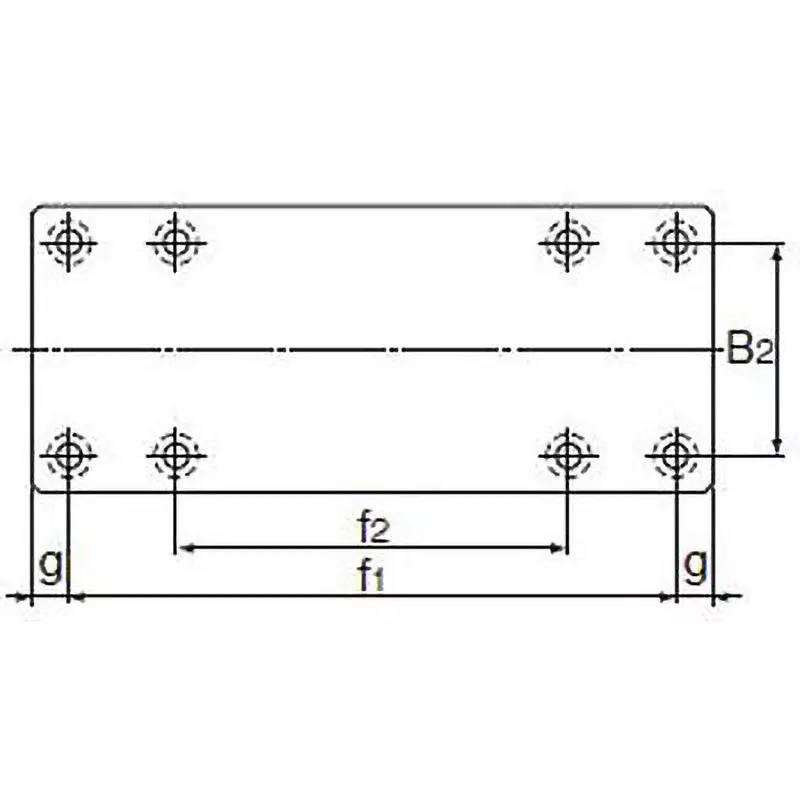

Dimension B1 (mm) |
55 |
Dimension B (Φmm) |
40 |
Type |
VRU Type |
Dimension A (Φmm) |
18.5 |
Basic Static Load Rating (kN) |
24.3 |
Basic Dynamic Load Rating (kN) |
14 |
Dimension H (Φmm) |
10.5 |
Dimension S |
M5 mm |
Mass (kg/m) |
(Axis) 1.0 |
Dimension T |
24 mm |
Maximum Stroke Length |
135 mm |
Dimension G |
42.5 mm |
Dimension d1 (Φmm) |
9.5 |
Dimension L (mm) |
205 |
Table Height |
24 mm |
Dimension W |
80 mm |
Dimension K |
12.5 mm |
Dimension B2 |
60 mm |
