| Model No | GE120ES |
| Type of Product | Lubrication Spherical Plain Bearings GEE, ES Type (No Seal) |
| Material | High Carbon Chrome Bearing Steel |
| Country of Origin | Japan |
Model No |
GE120ES |
Type of Product |
Lubrication Spherical Plain Bearings GEE, ES Type (No Seal) |
Material |
High Carbon Chrome Bearing Steel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10304707 |
Type |
GE-ES type |

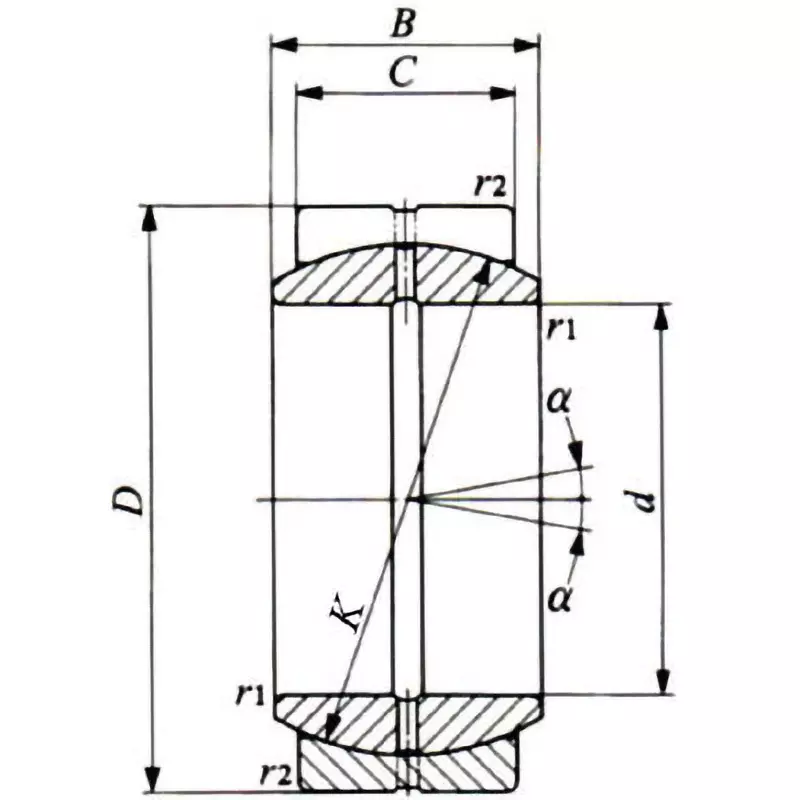

Static load capacity (N) |
6590000 |
Outer Diameter (Φmm) |
180 |
Chamfer dimension r2 (mm) |
1 (minimum allowable dimension) |
Dimensions C (mm) |
85 |
Mass (Kg) |
8.12 Kg |

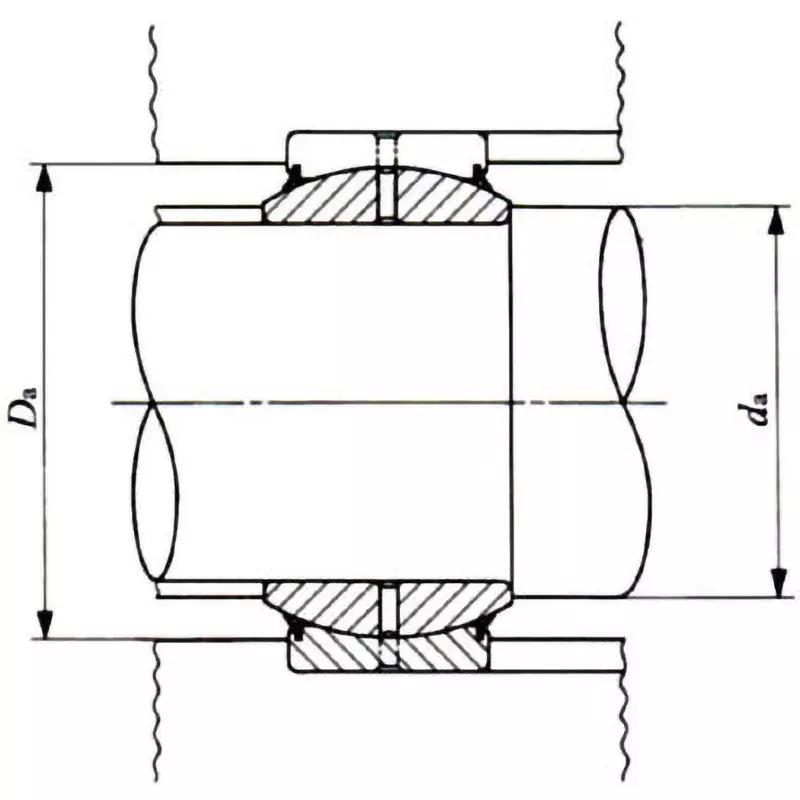

Mounting Dimension, Minimum da (mm) |
125.5 |
Dynamic load capacity (N) |
1100000 |
Mounting Dimension, Maximum Da (Φmm) |
174.5 |
Dimensions B (mm) |
70 |
Mounting Dimension, Maximum da (mm) |
135.5 (When using at all permissible tilt angles, the shoulder dimensions of the shaft should be smaller than da maximum.) |
Dimension K |
160 mm |
Angle α (°) |
6 |
Mounting Dimension, Minimum Da (Φmm) |
154 |
Dimensions D (mm) |
120 |
Presence of seal |
Without seal |
Chamfer Dimension r1 (mm) |
1 (minimum allowable dimension) |
