| Model No | GE5E |
| Type of Product | Lubrication Spherical Plain Bearings GEE, ES Type (No Seal) |
| Material | High Carbon Chrome Bearing Steel |
| Country of Origin | Japan |
Model No |
GE5E |
Type of Product |
Lubrication Spherical Plain Bearings GEE, ES Type (No Seal) |
Material |
High Carbon Chrome Bearing Steel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10304506 |
Mass (g) |
4 g |
Type |
GE-E type |
Static load capacity (N) |
23500 |
Outer Diameter (Φmm) |
14 |

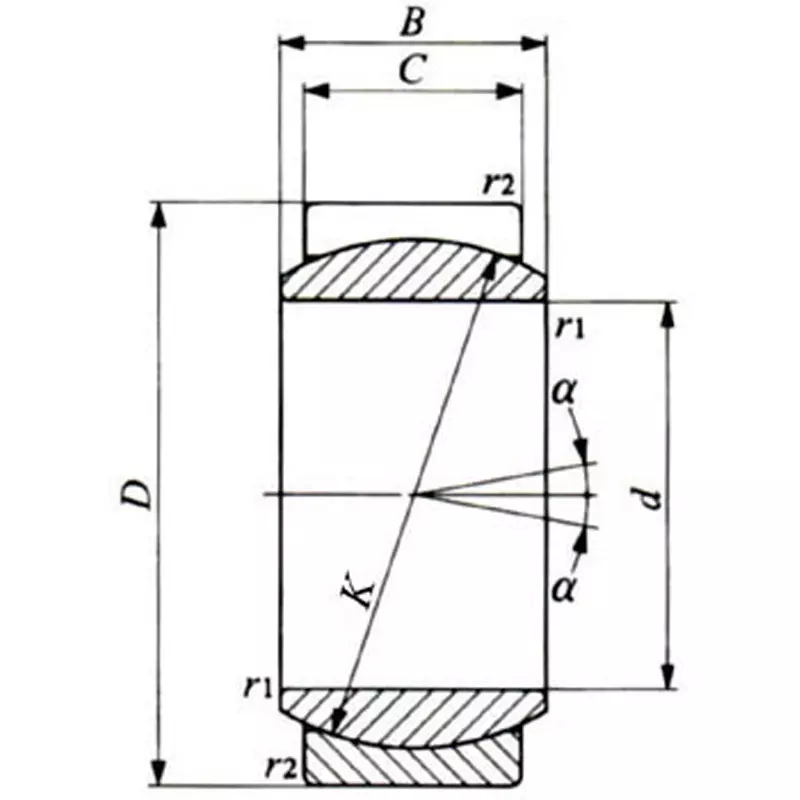

Dimensions C (mm) |
4 |
Mass (Kg) |
4.0000000000000001E-3 |

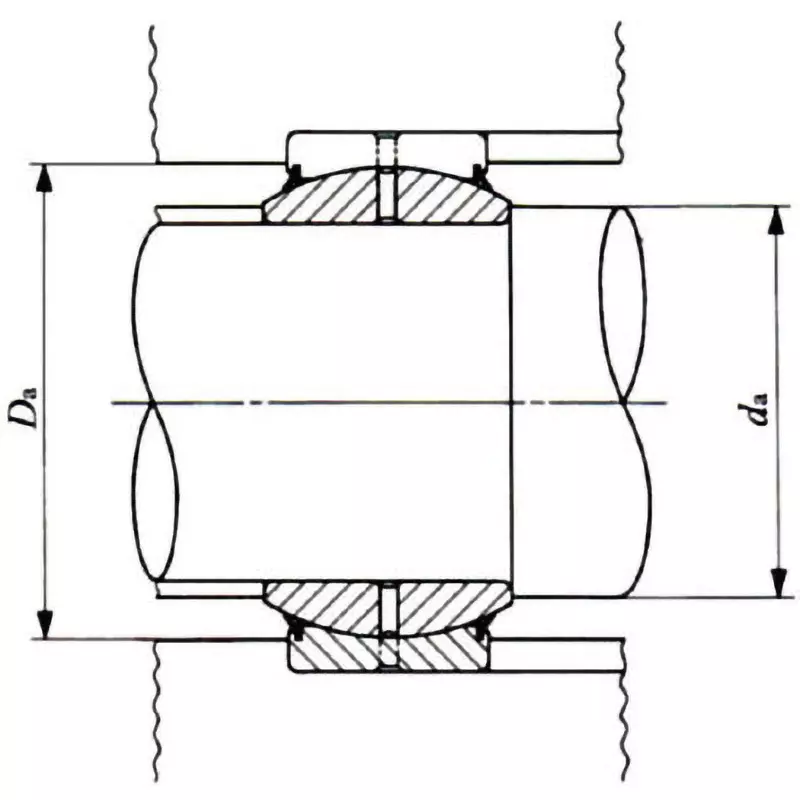

Mounting Dimension, Minimum da (mm) |
7.5 |
Dynamic load capacity (N) |
3920 |
Mounting Dimension, Maximum Da (Φmm) |
11.5 |
Specifications |
1N≒0.102Kgf |
Dimensions B (mm) |
6 |
Mounting Dimension, Maximum da (mm) |
7.5 (When using at all allowable tilt angles, the shaft shoulder dimension should be less than the maximum value of da.) |
Dimension K |
10 mm |
Angle α (°) |
13 |
Mounting Dimension, Minimum Da (Φmm) |
10 |
Dimensions D (mm) |
5 |
Presence of seal |
Without seal |
Chamfer Dimension r1 (mm) |
0.3 (minimum allowable dimension) |
