| Model No | GE60EC-2RS |
| Type of Product | Oil-Free Spherical Plain Bearings GE EC Type (With Seal) |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Model No |
GE60EC-2RS |
Type of Product |
Oil-Free Spherical Plain Bearings GE EC Type (With Seal) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10304472 |
Type |
GE-EC type |

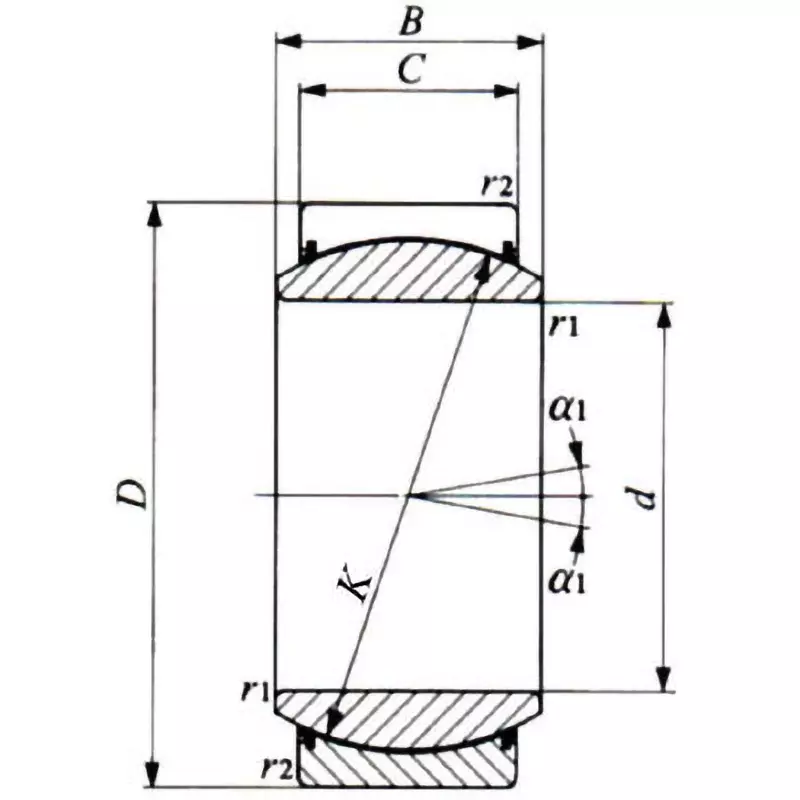

Static load capacity (N) |
706000 |
Outer Diameter (Φmm) |
90 |
Chamfer dimension r2 (mm) |
1 (minimum allowable dimension) |
Dimensions C (mm) |
44 |
Mass (Kg) |
1.1 Kg |

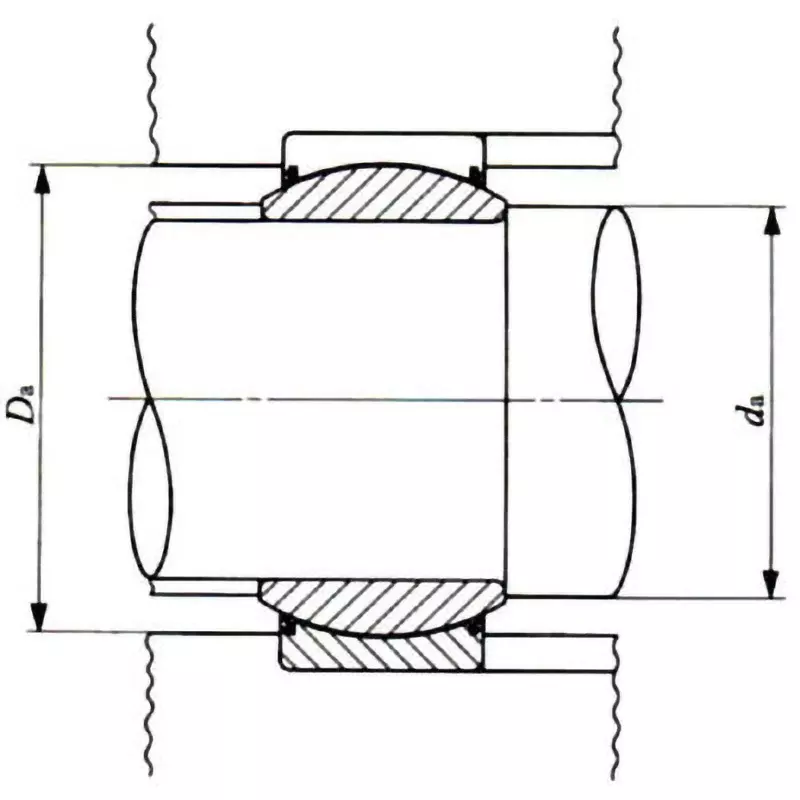

Mounting Dimension, Minimum da (mm) |
65.5 |
Dynamic load capacity (N) |
282000 |
Mounting Dimension, Maximum Da (Φmm) |
84.5 |
Dimensions B (mm) |
36 |
Mounting Dimension, Maximum da (mm) |
65.5 (When using at all allowable tilt angles, the shaft shoulder dimension should be less than the maximum value of da.) |
Dimension K |
80 mm |
Mounting Dimension, Minimum Da (Φmm) |
79 |
Dimensions D (mm) |
60 |
Presence of seal |
With seal |
Chamfer Dimension r1 (mm) |
1 (minimum allowable dimension) |
Angle α1 (°) |
3 |
