Ships within 25 days
View
View
View
View
| Model No | GE90ES |
| Type of Product | Lubrication Spherical Plain Bearings GEE, ES Type (No Seal) |
| Material | High Carbon Chrome Bearing Steel |
| Country of Origin | Japan |
Model No |
GE90ES |
Type of Product |
Lubrication Spherical Plain Bearings GEE, ES Type (No Seal) |
Material |
High Carbon Chrome Bearing Steel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10304673 |
Type |
GE-ES type |
Static load capacity (N) |
3380000 |
Outer Diameter (Φmm) |
130 |
Chamfer dimension r2 (mm) |
1 (minimum allowable dimension) |

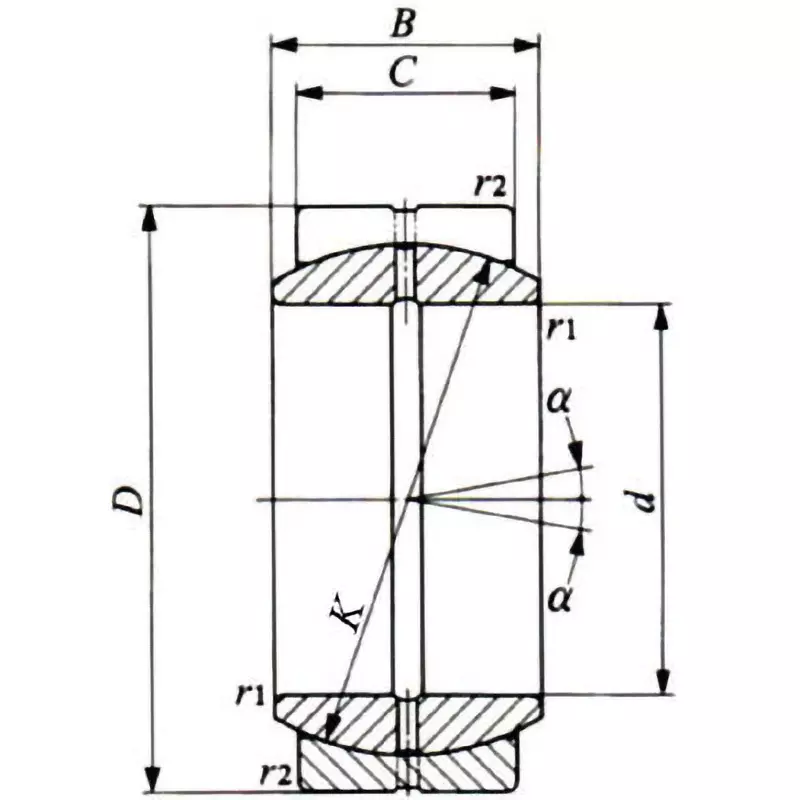

Dimensions C (mm) |
60 |
Mass (Kg) |
2.82 Kg |

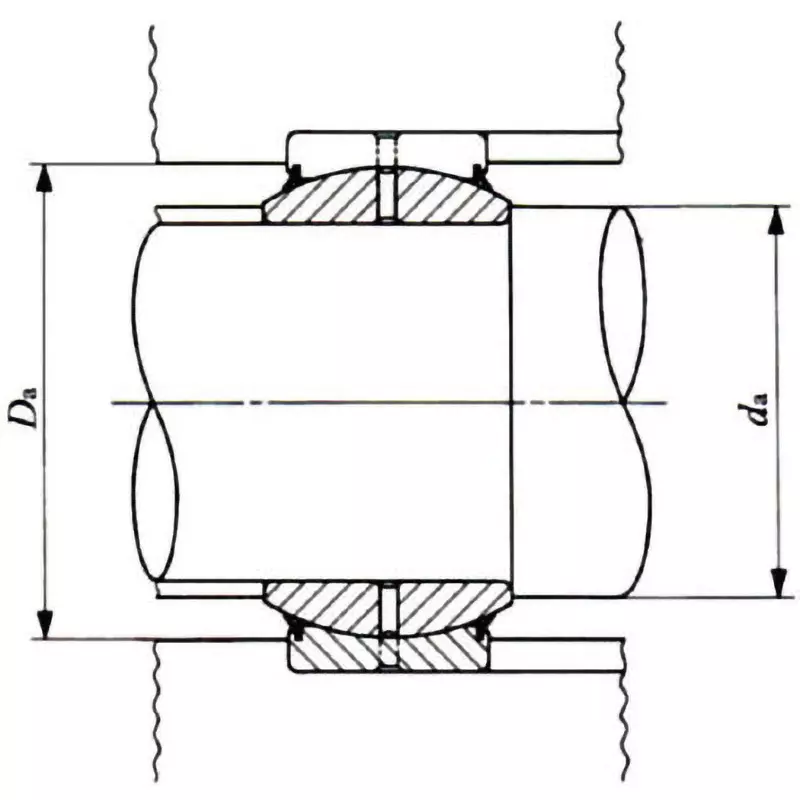

Mounting Dimension, Minimum da (mm) |
95.5 |
Dynamic load capacity (N) |
564000 |
Mounting Dimension, Maximum Da (Φmm) |
124.5 |
Dimensions B (mm) |
50 |
Mounting Dimension, Maximum da (mm) |
95.5 (When using at all permissible tilt angles, the shaft shoulder dimension should be less than the maximum value of da.) |
Dimension K |
115 mm |
Angle α (°) |
5 |
Mounting Dimension, Minimum Da (Φmm) |
112 |
Dimensions D (mm) |
90 |
Presence of seal |
Without seal |
Chamfer Dimension r1 (mm) |
1 (minimum allowable dimension) |
