| Model No | GE50EC-2RS |
| Type of Product | Oil-Free Spherical Plain Bearings GE EC Type (With Seal) |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Model No |
GE50EC-2RS |
Type of Product |
Oil-Free Spherical Plain Bearings GE EC Type (With Seal) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10304463 |
Mass (g) |
560 g |
Type |
GE-EC type |
Static load capacity (N) |
453000 |
Outer Diameter (Φmm) |
75 |
Chamfer dimension r2 (mm) |
1 (minimum allowable dimension) |

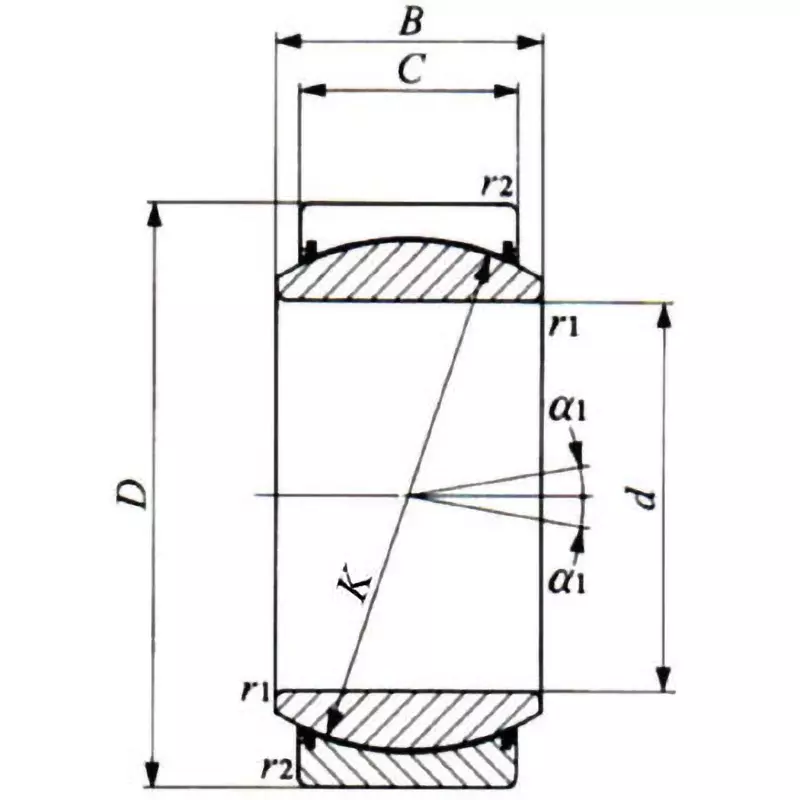

Dimensions C (mm) |
28 |
Mass (Kg) |
0.56000000000000005 |

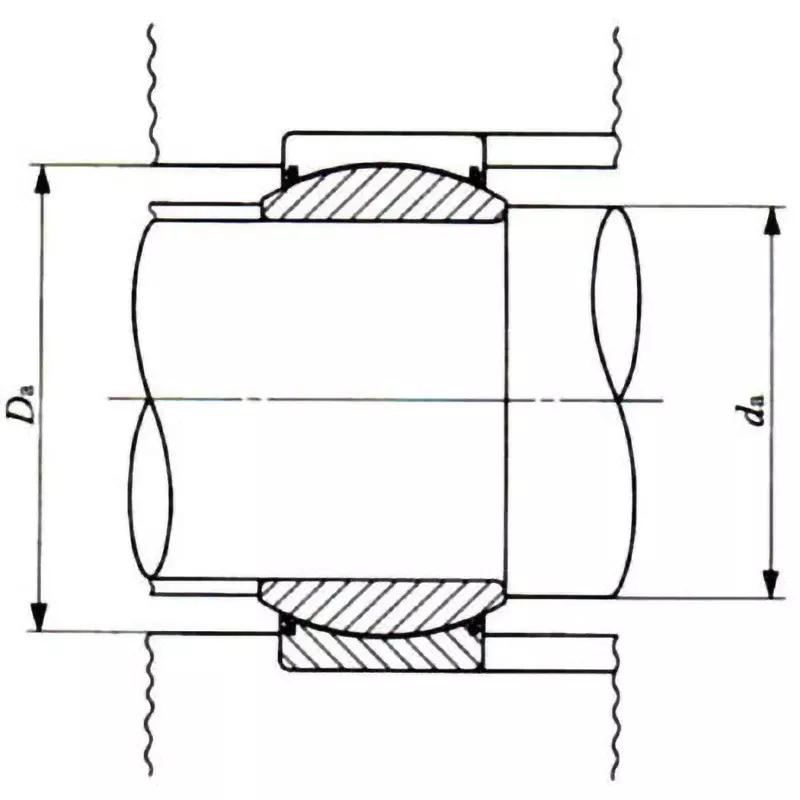

Mounting Dimension, Minimum da (mm) |
54.5 |
Dynamic load capacity (N) |
181000 |
Mounting Dimension, Maximum Da (Φmm) |
69.5 |
Specifications |
1N≒0.102Kgf |
Dimensions B (mm) |
35 |
Mounting Dimension, Maximum da (mm) |
54.5 (When using at all allowable tilt angles, the shaft shoulder dimension should be less than the maximum value of da.) |
Dimension K |
66 mm |
Mounting Dimension, Minimum Da (Φmm) |
66 |
Dimensions D (mm) |
50 |
Presence of seal |
With seal |
Chamfer Dimension r1 (mm) |
0.6 (minimum allowable dimension) |
