| Model No | GE30EC-2RS |
| Type of Product | Oil-Free Spherical Plain Bearings GE EC Type (With Seal) |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Model No |
GE30EC-2RS |
Type of Product |
Oil-Free Spherical Plain Bearings GE EC Type (With Seal) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10304427 |
Mass (g) |
160 g |
Type |
GE-EC type |
Static load capacity (N) |
180000 |

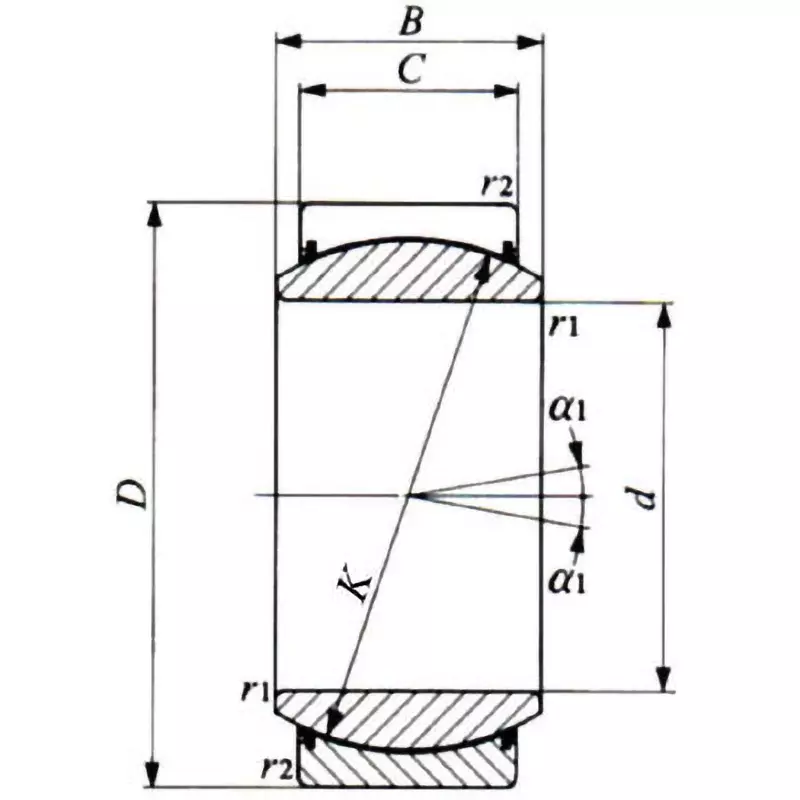

Outer Diameter (Φmm) |
47 |
Chamfer dimension r2 (mm) |
0.6 (minimum allowable dimension) |
Dimensions C (mm) |
18 |
Mass (Kg) |
0.16 |

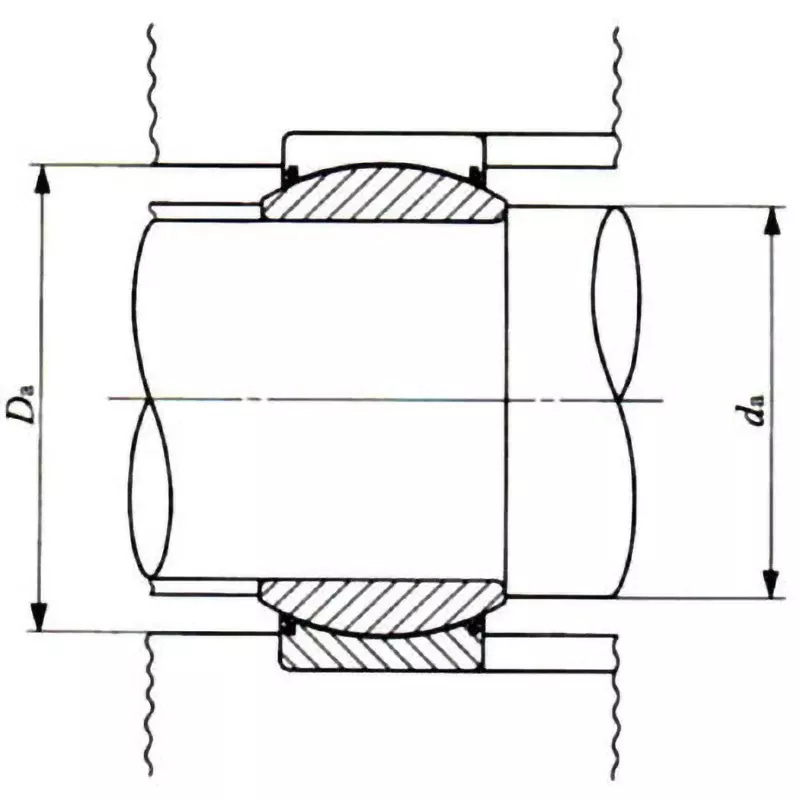

Mounting Dimension, Minimum da (mm) |
34 |
Dynamic load capacity (N) |
71800 |
Mounting Dimension, Maximum Da (Φmm) |
42.5 |
Specifications |
1N≒0.102Kgf |
Dimensions B (mm) |
22 |
Mounting Dimension, Maximum da (mm) |
34 (When using at all allowable tilt angles, the shaft shoulder dimension should be less than the maximum value of da.) |
Dimension K |
40.7 mm |
Mounting Dimension, Minimum Da (Φmm) |
41.5 |
Dimensions D (mm) |
30 |
Presence of seal |
With seal |
Chamfer Dimension r1 (mm) |
0.6 (minimum allowable dimension) |
