| Model No | SB7011058 |
| Type of Product | Lubricated Spherical Plain Bearing SB (Without Seal) |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Nippon Thompson Co., Ltd. |
Model No |
SB7011058 |
Type of Product |
Lubricated Spherical Plain Bearing SB (Without Seal) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10304007 |
Type |
SB type |

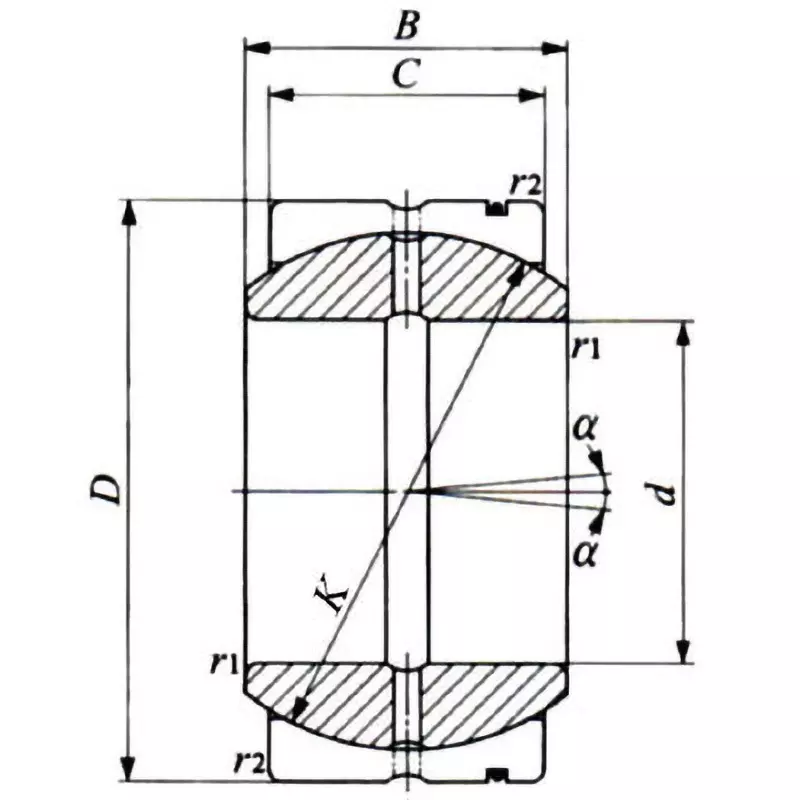

Static load capacity (N) |
2940000 |
Outer Diameter (Φmm) |
110 |
Dimensions C (mm) |
50 |
Chamfer Dimension r (mm) |
0.6 (minimum allowable dimension) |
Mass (Kg) |
2.22 Kg |

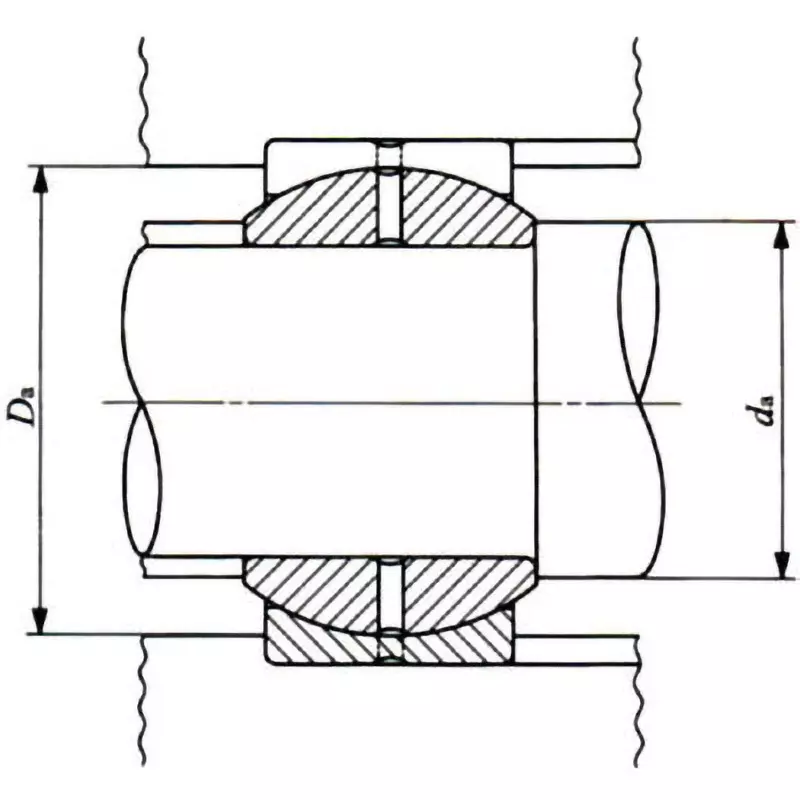

Mounting Dimension, Minimum da (mm) |
74.5 |
Dynamic load capacity (N) |
490000 |
Mounting Dimension, Maximum Da (Φmm) |
105.5 |
Dimensions B (mm) |
58 |
Mounting Dimension, Maximum da (mm) |
81.5 (When using at all permissible tilt angles, the shaft shoulder dimension should be less than the maximum value of da.) |
Dimension K |
100 mm |
Angle α (°) |
5 (allowable slope) |
Mounting Dimension, Minimum Da (Φmm) |
93 |
Dimensions D (mm) |
70 |
