Ships within 25 days
View
View
View
View
| Model No | GE20ES |
| Type of Product | Lubrication Spherical Plain Bearings GEE, ES Type (No Seal) |
| Material | High Carbon Chrome Bearing Steel |
| Country of Origin | Japan |
Model No |
GE20ES |
Type of Product |
Lubrication Spherical Plain Bearings GEE, ES Type (No Seal) |
Material |
High Carbon Chrome Bearing Steel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
10304576 |
Mass (g) |
65 g |
Type |
GE-ES type |
Static load capacity (N) |
205000 |
Outer Diameter (Φmm) |
35 |
Dimensions C (mm) |
12 |
Mass (Kg) |
6.5000000000000002E-2 |

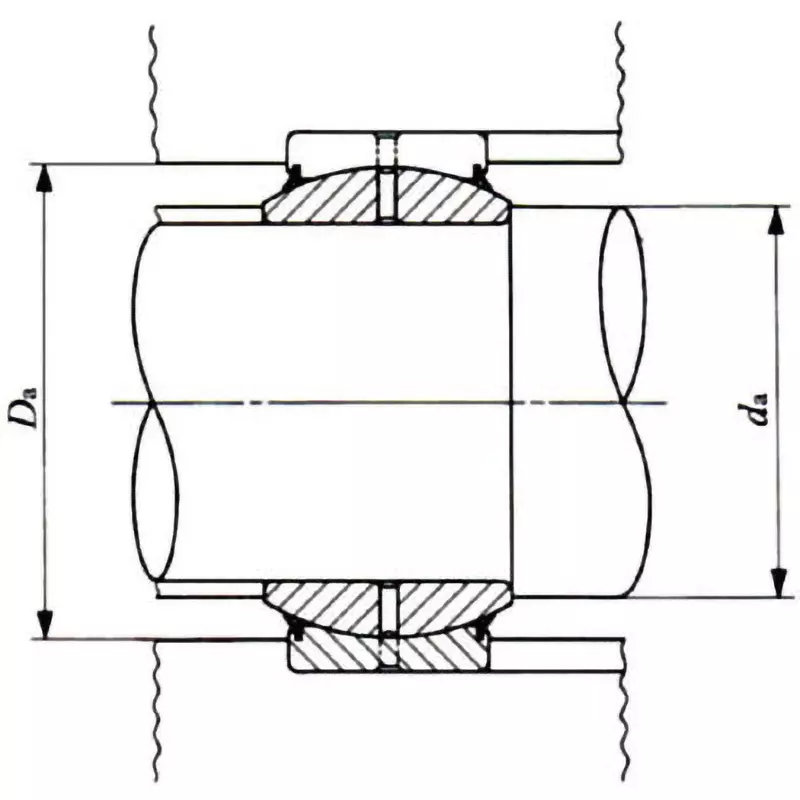

Mounting Dimension, Minimum da (mm) |
22.5 |
Dynamic load capacity (N) |
34100 |
Mounting Dimension, Maximum Da (Φmm) |
32.5 |
Specifications |
1N≒0.102Kgf |

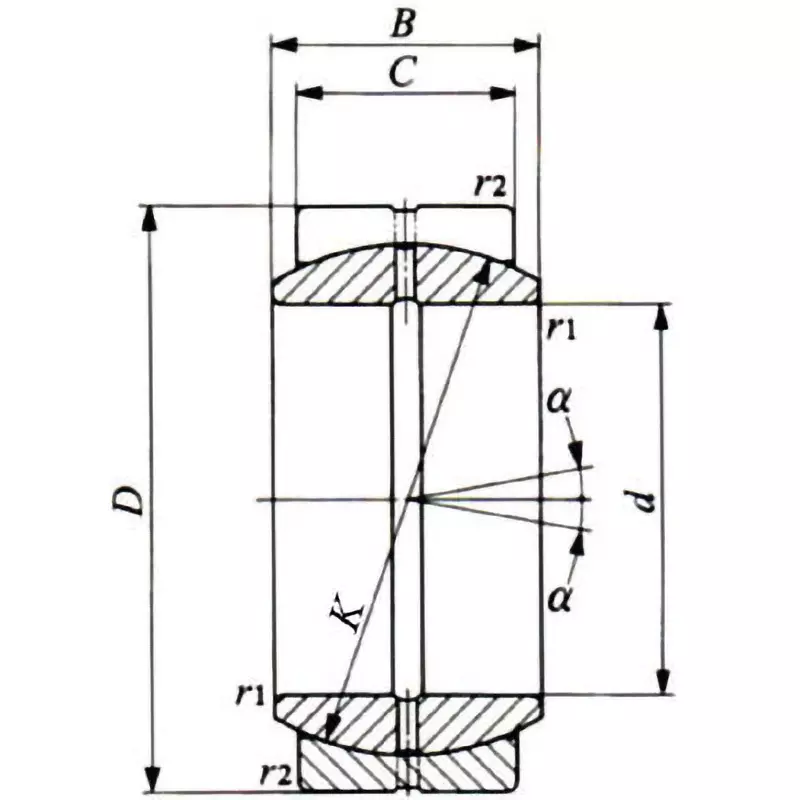

Dimensions B (mm) |
16 |
Mounting Dimension, Maximum da (mm) |
22.5 (When using at all allowable tilt angles, the shaft shoulder dimension should be less than the maximum value of da.) |
Dimension K |
29 mm |
Angle α (°) |
9 |
Mounting Dimension, Minimum Da (Φmm) |
30.5 |
Dimensions D (mm) |
20 |
Presence of seal |
Without seal |
Chamfer Dimension r1 (mm) |
0.3 (minimum allowable dimension) |
