| Model No | PB5 |
| Type of Product | Spherical Bearing |
| Material | (Outer ring) S35C, (Spherical inner ring) SUJ2HRC58 or higher, (Bush) Copper alloy |
| Country of Origin | Japan |
Model No |
PB5 |
Type of Product |
Spherical Bearing |
Material |
(Outer ring) S35C, (Spherical inner ring) SUJ2HRC58 or higher, (Bush) Copper alloy |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
THK Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
742245 |
Mass (g) |
8.5 |

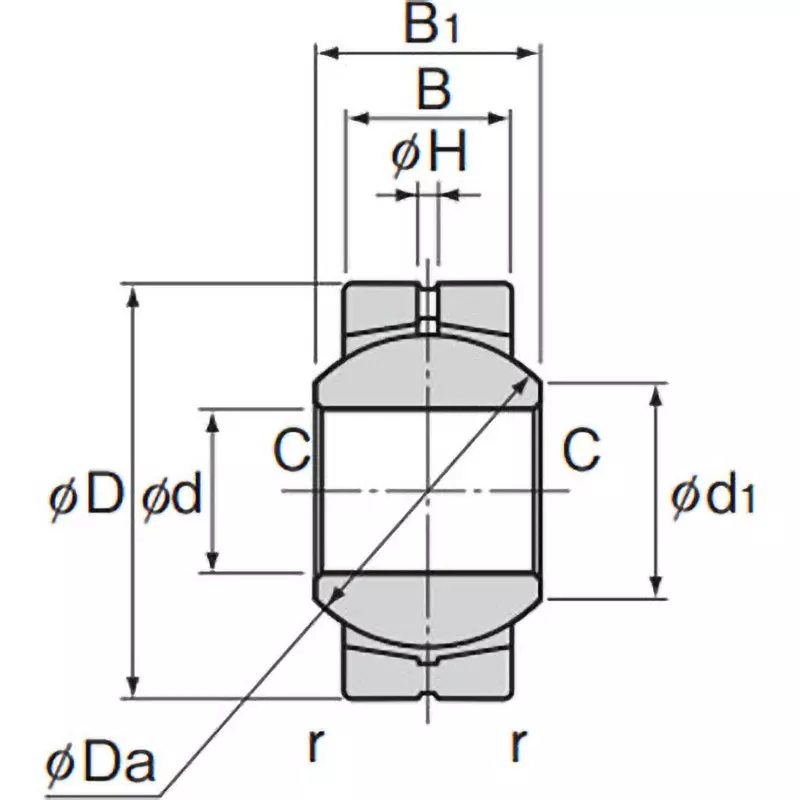

Dimension H (Φmm) |
1 |
Inner Diameter d (Φmm) |
5(h7) |
Tilt Angle |
8° (α1)/13° (α2)/30° (α3) |
Surface Treatment |
Hard chrome plating treatment (Inner ring inner diameter is not treated) |
Dimension R |
0.3 mm |
Type |
PB Type |
RoHS Directive |
Correspondence |
Outer Diameter D (Φmm) |
16 mm (H6) |
Width B1 (mm) |
8(-0.01) |
Width B (mm) |
6(±0.1) |
Dimension DA (mm) |
11.112 (7/16 inch inch) |
Dimension D1 (mm) |
7.7 |
Static load capacity (N) |
7840(Cs) |
Dimension C |
0.3 mm |
