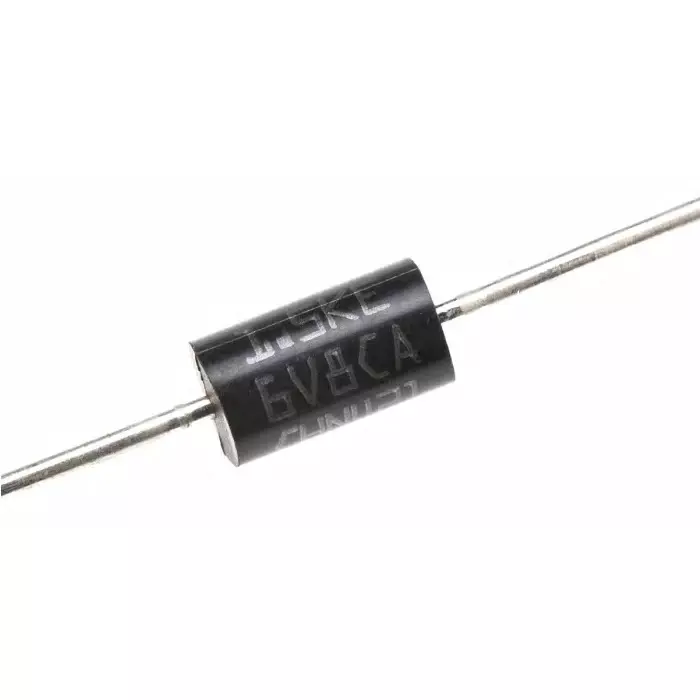

| Type of Product | TVS Diode |
| Dimension | 9.5 x 5.3 x 5.3 mm |
| Model No | 1.5KE6V8CA |
| Country of Origin | USA |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
TVS Diode |
Dimension |
9.5 x 5.3 x 5.3 mm |
Model No |
1.5KE6V8CA |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Diode Configuration |
Single |
Maximum Clamping Voltage |
13.4 V |
Number of Elements Per Chip |
1 |
Directions |
Bi-Directional |
Package Type |
DO-201 |
Mounting Type |
Through Hole |
Peak Pulse Power Dissipation |
1500 W |
Pin Count |
2 |
Height |
5.3 mm |
Test Current |
10 mA |
Maximum Reverse Stand-off Voltage |
5.8 V |
Length |
9.5 mm |
Maximum Operating Temperature |
+175 °C |
Width |
5.3 mm |
Maximum Reverse Leakage Current |
1mA |
Minimum Operating Temperature |
-65 °C |
Maximum Peak Pulse Current |
746 Amp |
Minimum Breakdown Voltage |
6.45 V |
