| Type of Product | TVS Diode |
| Dimension | 4.6 x 3.95 x 2.45 mm |
| Model No | SM6T220CA |
| Country of Origin | USA |
Type of Product |
TVS Diode |
Dimension |
4.6 x 3.95 x 2.45 mm |
Model No |
SM6T220CA |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Diode Configuration |
Single |
Maximum Clamping Voltage |
388 V |
Number of Elements Per Chip |
1 |
Directions |
Bi-Directional |

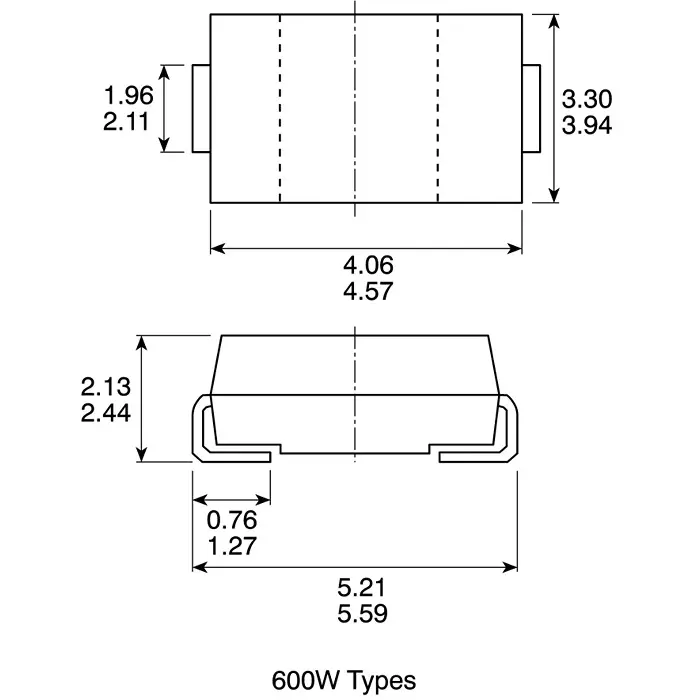

Package Type |
DO-214AA (SMB) |
Mounting Type |
Surface Mount |
Peak Pulse Power Dissipation |
600 W |
Pin Count |
2 |
Height |
2.45 mm |
Test Current |
1 mA |
Maximum Reverse Stand-off Voltage |
188 V |
Length |
4.6 mm |
Maximum Operating Temperature |
+150 °C |
Width |
3.95 mm |
Maximum Reverse Leakage Current |
200 nA |
Minimum Operating Temperature |
-55 °C |
Maximum Peak Pulse Current |
10.3 Amp |
Minimum Breakdown Voltage |
209 V |
