| Type of Product | TVS Diode |

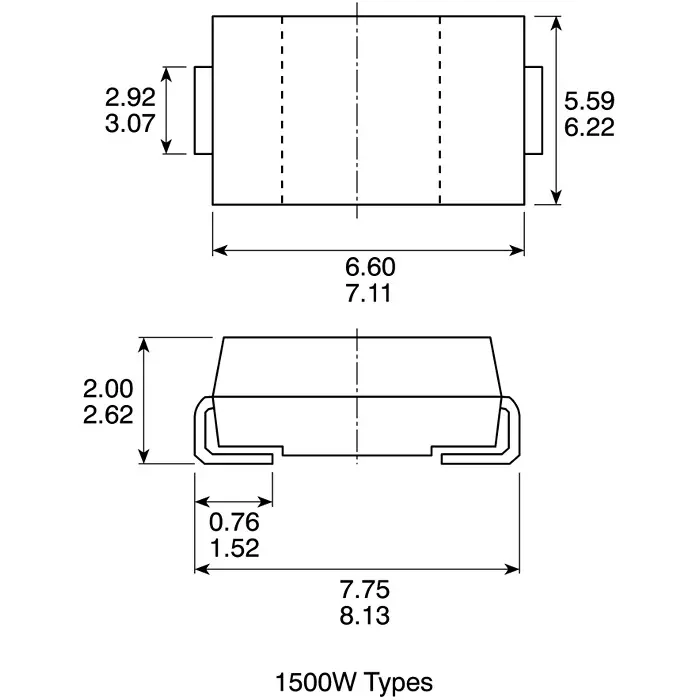

| Dimension | 7.15 x 6.25 x 2.45 mm |
| Model No | SM15T200A |
| Country of Origin | USA |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
TVS Diode |
Dimension |
7.15 x 6.25 x 2.45 mm |
Model No |
SM15T200A |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Diode Configuration |
Single |
Maximum Clamping Voltage |
353 V |
Number of Elements Per Chip |
1 |
Directions |
Uni-Directional |
Package Type |
SMC |
Mounting Type |
Surface Mount |
Peak Pulse Power Dissipation |
1500 W |
Pin Count |
2 |
Height |
2.45 mm |
Test Current |
1 mA |
Maximum Reverse Stand-off Voltage |
171 V |
Length |
7.15 mm |
Maximum Operating Temperature |
+150 °C |
Width |
6.25 mm |
Maximum Reverse Leakage Current |
1 µA |
Minimum Operating Temperature |
-55 °C |
Maximum Peak Pulse Current |
28 Amp |
Minimum Breakdown Voltage |
190 V |
