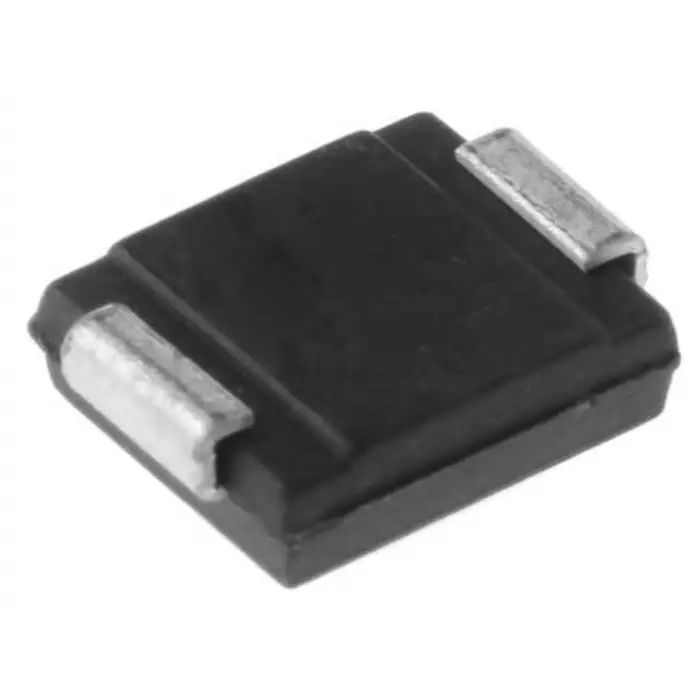

| Type of Product | Uni-Directional TVS Diode |
| Dimension | 7.15 x 6.25 x 2.45 mm |
| Model No | STIEC45-30AS |
| Country of Origin | Morocco |
Type of Product |
Uni-Directional TVS Diode |
Dimension |
7.15 x 6.25 x 2.45 mm |
Model No |
STIEC45-30AS |
Country of Origin |
Morocco |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Diode Configuration |
Single |
Maximum Clamping Voltage |
55 V |
Number of Elements Per Chip |
1 |
Directions |
Uni-Directional |
Package Type |
DO-214AB (SMC) |
Mounting Type |
Surface Mount |
Pin Count |
2 |
Height |
2.45 mm |
Maximum Reverse Stand-off Voltage |
30 V |
Length |
7.15 mm |
Maximum Operating Temperature |
+150 °C |
Width |
6.25 mm |
Maximum Reverse Leakage Current |
1 µA |
Minimum Operating Temperature |
-55 °C |
Maximum Peak Pulse Current |
500 Amp |
Minimum Breakdown Voltage |
33.3 V |
