Ships within 15 days
View
View
View
View

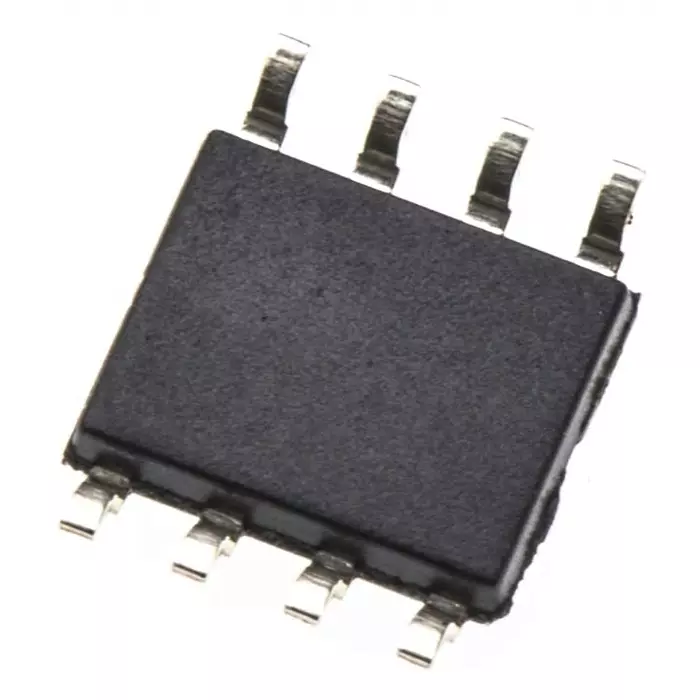

| Type of Product | Bi-Directional TVS Diode |
| Dimension | 5 x 4 x 1.25 mm |
| Model No | USB6B1RL |
| Country of Origin | USA |
Type of Product |
Bi-Directional TVS Diode |
Dimension |
5 x 4 x 1.25 mm |
Model No |
USB6B1RL |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Diode Configuration |
Complex Array |
Number of Elements Per Chip |
2 |
Directions |
Bi-Directional |
Package Type |
SOIC |
Mounting Type |
Surface Mount |
Peak Pulse Power Dissipation |
500 W |
Pin Count |
8 |
Height |
1.25 mm |
Test Current |
1 mA |
Maximum Reverse Stand-off Voltage |
5.2 V |
Length |
5 mm |
Maximum Operating Temperature |
+85 °C |
Width |
4 mm |
Maximum Reverse Leakage Current |
10 µA |
Minimum Operating Temperature |
-40 °C |
Maximum Peak Pulse Current |
40 Amp |
ESD Protection |
Yes |
Minimum Breakdown Voltage |
6 V |
