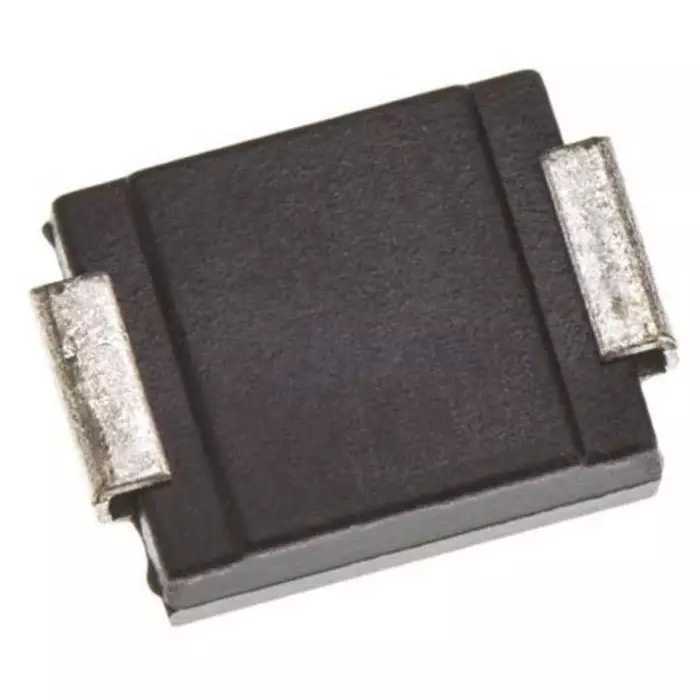

| Type of Product | Uni-Directional TVS Diode |
| Dimension | 7.11 x 6.22 x 2.42 mm |
| Model No | SMCJ24A-E3/57T |
| Country of Origin | China |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Uni-Directional TVS Diode |
Dimension |
7.11 x 6.22 x 2.42 mm |
Model No |
SMCJ24A-E3/57T |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Diode Configuration |
Single |
Maximum Clamping Voltage |
38.9 V |
Number of Elements Per Chip |
1 |
Directions |
Uni-Directional |
Breakdown Voltage |
26.7 V |
Package Type |
DO-214AB (SMC) |
Mounting Type |
Surface Mount |
Peak Pulse Power Dissipation |
1500 W |
Pin Count |
2 |
Height |
2.42 mm |
Test Current |
1 mA |
Maximum Reverse Stand-off Voltage |
24 V |
Length |
7.11 mm |
Maximum Operating Temperature |
+150 °C |
Width |
6.22 mm |
Maximum Reverse Leakage Current |
1 µA |
Minimum Operating Temperature |
-55°C |
Maximum Peak Pulse Current |
38.6 Amp |
ESD Protection |
Yes |
