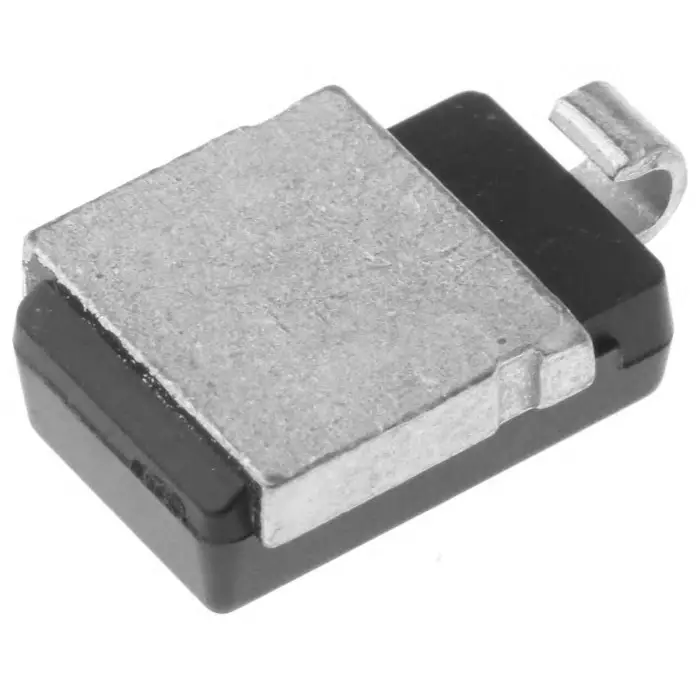

| Type of Product | Uni-Directional TVS Diode |
| Dimension | 13.7 x 8.7 x 4.6 mm |
| Model No | SM8S33AHE3_A/I |
| Country of Origin | Taiwan, Province Of China |
Type of Product |
Uni-Directional TVS Diode |
Dimension |
13.7 x 8.7 x 4.6 mm |
Model No |
SM8S33AHE3_A/I |
Country of Origin |
Taiwan, Province Of China |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Diode Configuration |
Single |
Maximum Clamping Voltage |
53.3 V |
Number of Elements Per Chip |
1 |
Directions |
Uni-Directional |
Breakdown Voltage |
36.7 V |
Package Type |
DO-218AB |
Mounting Type |
Surface Mount |
Peak Pulse Power Dissipation |
6600 W |
Pin Count |
2 |
Height |
4.6 mm |
Test Current |
5 mA |
Maximum Reverse Stand-off Voltage |
33 V |
Length |
13.7 mm |
Maximum Operating Temperature |
+175 °C |
Width |
8.7 mm |
Maximum Reverse Leakage Current |
10 µA |
Minimum Operating Temperature |
-55 °C |
Maximum Peak Pulse Current |
124 Amp |
