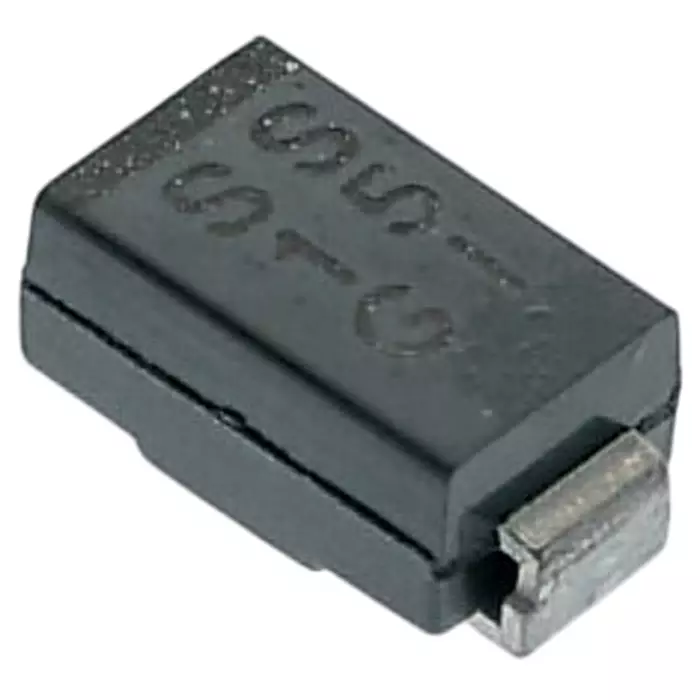

| Type of Product | Bi-Directional TVS Diode |
| Dimension | 4.5 x 2.79 x 2.09 mm |
| Model No | SMAJ15CA-E3/61 |
| Country of Origin | USA |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Bi-Directional TVS Diode |
Dimension |
4.5 x 2.79 x 2.09 mm |
Model No |
SMAJ15CA-E3/61 |
Country of Origin |
USA |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Diode Configuration |
Single |
Maximum Clamping Voltage |
24.4 V |
Number of Elements Per Chip |
1 |
Directions |
Bi-Directional |
Breakdown Voltage |
16.7 V |
Package Type |
DO-214AC (SMA) |
Mounting Type |
Surface Mount |
Peak Pulse Power Dissipation |
400 W |
Pin Count |
2 |
Height |
2.09 mm |
Test Current |
1 mA |
Maximum Reverse Stand-off Voltage |
15 V |
Length |
4.5 mm |
Maximum Operating Temperature |
+150 °C |
Width |
2.79 mm |
Maximum Reverse Leakage Current |
1 µA |
Minimum Operating Temperature |
-55 °C |
Maximum Peak Pulse Current |
16.4 Amp |
