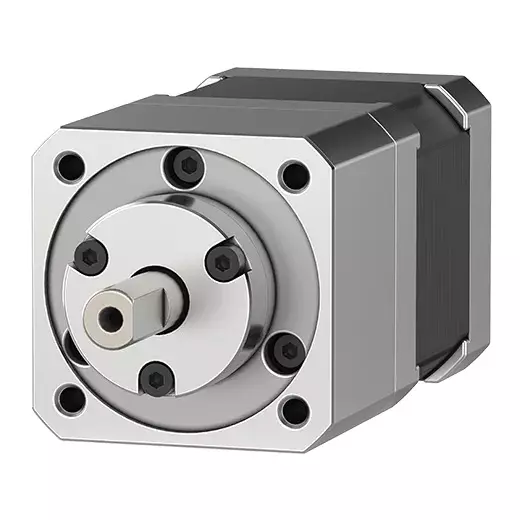

| Type of Product | 5-Phase Stepper Motor |
| Model No | A15K-S545W-G7.2 |
| Motor Length (mm) | 74.5 mm |
| Weight | Approx. 0.68 K g (Approx. 0.58 Kg) |
Type of Product |
5-Phase Stepper Motor |
Model No |
A15K-S545W-G7.2 |
Motor Length (mm) |
74.5 mm |
Weight |
Approx. 0.68 K g (Approx. 0.58 Kg) |
Rated Current |
0.75 A/Phase |
Country of Origin |
South Korea |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Shaft Type |
Dual shaft |
Protection Structure |
IP30 |
Electromagnetic Brake Static Friction Torque |
1.8kgf.cm |
Electromagnetic Brake Rated Excitation Current |
0.2A |
Winding Resistance |
2.2Ω |
Electromagnetic Brake B Type Brake |
Power on: brake is released, power off: brake is operating |
Rotor Moment Of Inertia |
68g·cm² |
Electromagnetic Brake Rotation Part Inertia Moment |
3×10-7kgf.cm² |
Electromagnetic Brake Rated Excitation Voltage |
24VDC ±10%(no-polarity) |
Wire Connection |
Pentagon |
Electromagnetic Brake Operating Time |
Max. 15ms |
Electromagnetic Brake Releasing Time |
Max. 25ms |
Basic Step Angle [Full/Half] |
0.1º/0.05º |
Maximum Allowable Torque |
15kgf.cm |
Allowable Speed Range |
0 to 250rpm |
Backlash |
±35'(0.58˚) |
Reduction Ratio |
1:7.2 |
