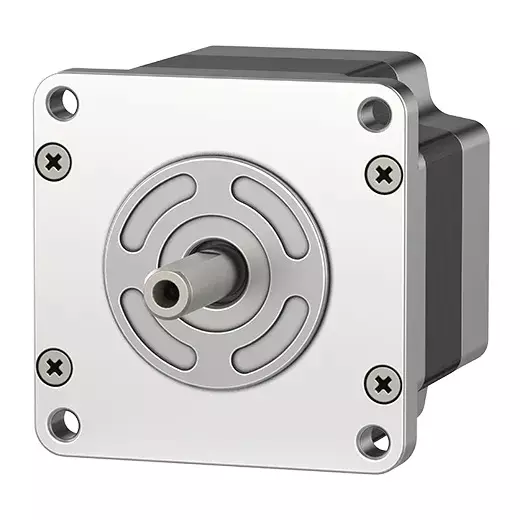

| Type of Product | 5-Phase Stepper Motor |
| Model No | A16K-G569 |
| Holding Torque | 16.6kgf.cm (Max.) |
| Motor Length (mm) | 89 mm |
Type of Product |
5-Phase Stepper Motor |
Model No |
A16K-G569 |
Holding Torque |
16.6kgf.cm (Max.) |
Motor Length (mm) |
89 mm |
Weight |
Approx. 1.55 K g (Approx. 1.3 Kg) |
Rated Current |
2.8 A/Phase |
Country of Origin |
South Korea |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Shaft Type |
Single shaft |
Protection Structure |
IP30 |
Electromagnetic Brake Static Friction Torque |
8kgf.cm |
Electromagnetic Brake Rated Excitation Current |
0.33A |
Winding Resistance |
0.56Ω |
Electromagnetic Brake B Type Brake |
Power on: brake is released, power off: brake is operating |
Rotor Moment Of Inertia |
560g·cm² |
Electromagnetic Brake Rotation Part Inertia Moment |
29×10-7kgf.cm² |
Electromagnetic Brake Rated Excitation Voltage |
24VDC ±10%(no-polarity) |
Wire Connection |
Pentagon |
Electromagnetic Brake Operating Time |
Max. 25ms |
Electromagnetic Brake Releasing Time |
Max. 20ms |
Basic Step Angle [Full/Half] |
0.72º/0.36º |
