| Country of Origin | Japan |
| Type of Product | Storage Cabinet |
| Model No | CMEV606016WC |
| Monotaro ID | 7371165 |
Country of Origin |
Japan |
Type of Product |
Storage Cabinet |
Model No |
CMEV606016WC |
Monotaro ID |
7371165 |
Name of Manufacturer/Packer/Importer |
Naigai Electric Co., Ltd. |
Import Country |
Direct Import from Japan |
Specifications |
Exposure type |
Earth Terminal |
Copper terminal screw M8x16 (green head) |
Door Dimensions, Height x Width (mm) |
555x555 |
Material (Circuit Board) |
Wooden 15 mm |
Effective Depth (mm) |
130 |
Mass (Kg) |
20 |
Paint Color |
Cream color (Munsell value: 2.5Y9 / 1) |
Handle |
Swing handle (key No.G200N)<br> Small (PH-89-3) |
Circuit Board Dimensions, Length x Width (mm) |
520x520 |
Door Material |
Iron 1.6 mm |
Door Opening / Closing Pattern |
One-Sided |
Protection Class |
IP2XB |
Body Material |
Iron 1.6 mm |
Frame Material |
Iron 1.6 mm |
Dimensions LengthxWidthxThickness (mm) |
600x600x160 |
RoHS Directive |
Correspondence |

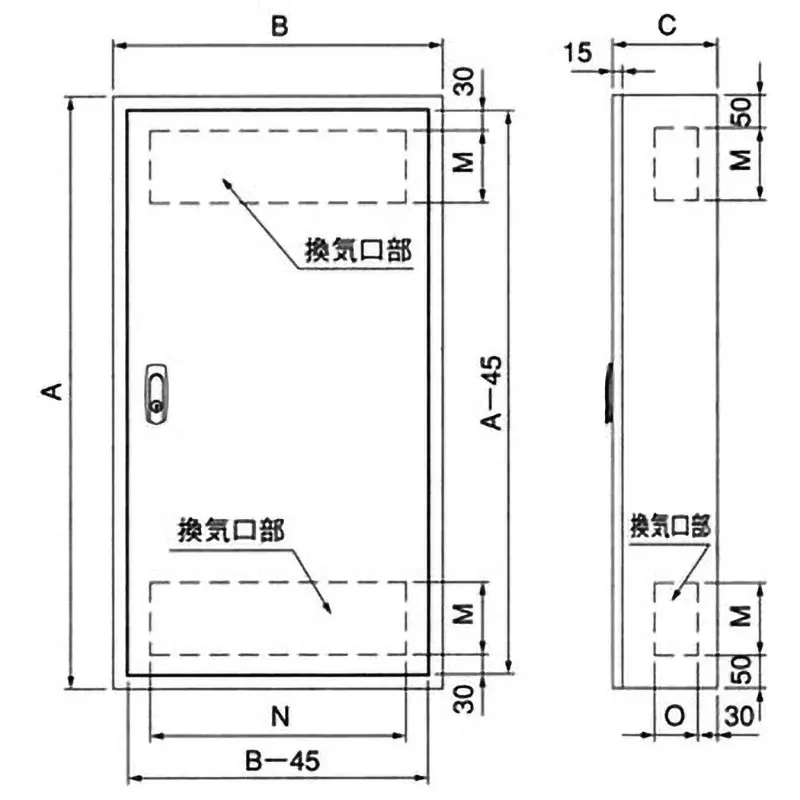

Exhaust Port N (mm) |
66 mm |
Exhaust Port M (mm) |
486 mm |
Exhaust Port O (mm) |
70 mm |
