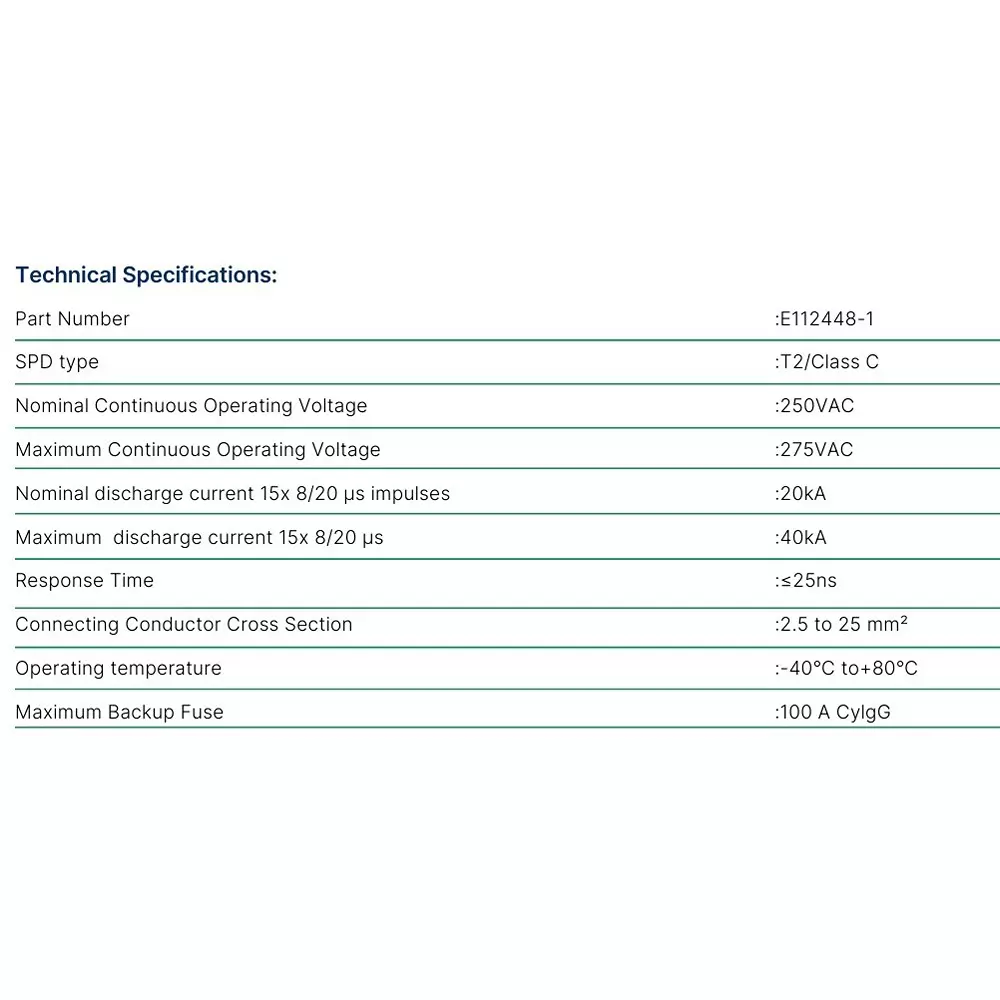

| Type of Product | Surge Protector |
| Configuration | SPD: One Port |
| Features | Modular design, plug-in structure Easy maintenance and replacement Multi-window release indication With overheat and overcurrent disengagement device Thermal cut-off device, providing reliable protection Fast response time, high reliability and stable performance |
| No. of Pole | 2 Pole |
Type of Product |
Surge Protector |
Configuration |
SPD: One Port |
Features |
Modular design, plug-in structure Easy maintenance and replacement Multi-window release indication With overheat and overcurrent disengagement device Thermal cut-off device, providing reliable protection Fast response time, high reliability and stable performance |
No. of Pole |
2 Pole |
Voltage |
250 V AC |
Part No |
E112448-1 |
Mounting Type |
35 mm DIN Rail |
Discharge Current |
20-40 kA |
Weight |
400 g |
Phase |
Single |
Country of Origin |
India |
Operating Voltage |
250 V AC to 275 V AC |
Application |
Electric power supply networks, Automatic control buses, Electric Vehicle Charging Stations |
Response Time |
≤25 ns |
Technology |
MOV |
IP Rating |
IP 20 |
Housing Material |
Flame Retardant PBT |
Name of Manufacturer/Packer/Importer |
EMIS India |
Item Code |
SSP2406 |
Operating Temperature |
-40℃ to+80℃ |
Approval |
CE, RoHS |
Cross section |
Connecting Conductor: 2.5 to 25 mm² |
SPD Type |
T2/Class C |
