| Type of Product | Socket Connector Case |
| Monotaro ID | 34602574 |
| Type | Square |
| No. of Pole | 15 |
Type of Product |
Socket Connector Case |
Monotaro ID |
34602574 |
Type |
Square |
No. of Pole |
15 |
Shape |
Straight |
Operating Temperature Range |
-25 to 85℃ |
Model No |

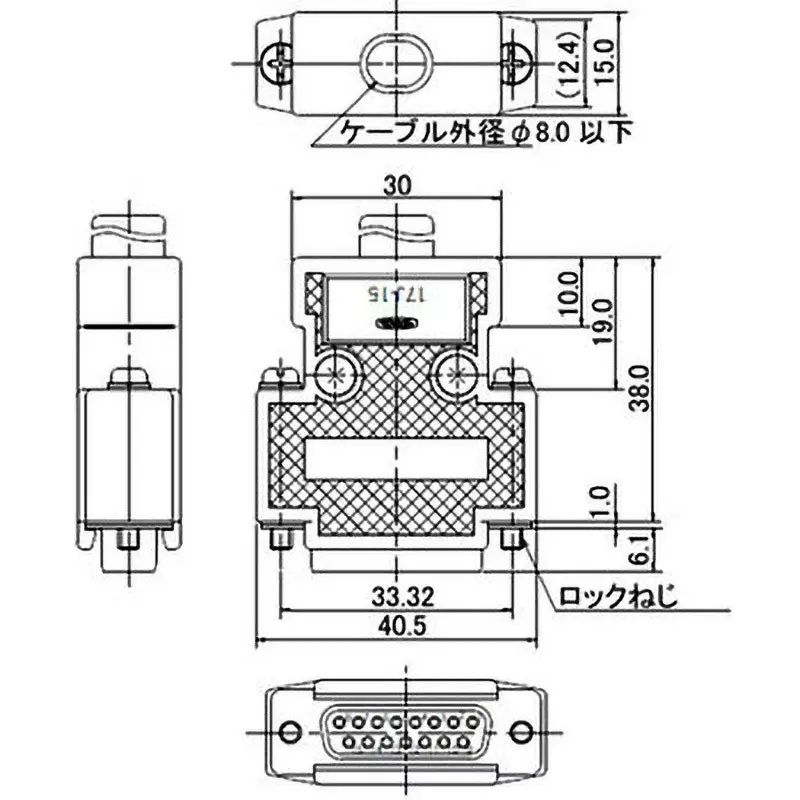

17JE-13150-02(D8A)A-CG |
Country of Origin |
Japan |
Connection Type |
Screw |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Withstand Voltage |
1000V AC (RMS) for 1 minute |
Insulation Resistance (MOhm) |
1000 or more (DC 500 V) |
Specifications |
Connector with cable hood, shield measures |
Contact Resistance (ohm) |
less than 10 |
Rated Voltage (V) |
AC 300 |
Rated Current (A) |
5 |
Material/Finish |
(Block) Pbt Resin (Ul94V-0) / Milky White (Shell) Steel / Ni Plating (Contact) Copper Alloy / Ni Base Au Plating (Hood) Abs Resin / Ni Plating Metallized Plastic (Jack Screw) Steel Or Brass / Ni Plating |
Shape Type |
Female |
Suitable Wire |
(Single wire) AWG20 or less (stranded wire) AWG22 or less |
Thread Type |
(Mating Screw) M2.6 x 0.45 |
Connector Shape |
Socket connector |
Connection Method |
Solder |
