| Type of Product | Straight Back With Seal |
| Monotaro ID | 38562946 |
| Suitable For | (Receptacle) CE05-2A18-12PD-D (Waterproof cable clamp) CE3057-10A-XD |
| Type | Round Type |
Type of Product |
Straight Back With Seal |
Monotaro ID |
38562946 |
Suitable For |
(Receptacle) CE05-2A18-12PD-D (Waterproof cable clamp) CE3057-10A-XD |
Type |
Round Type |

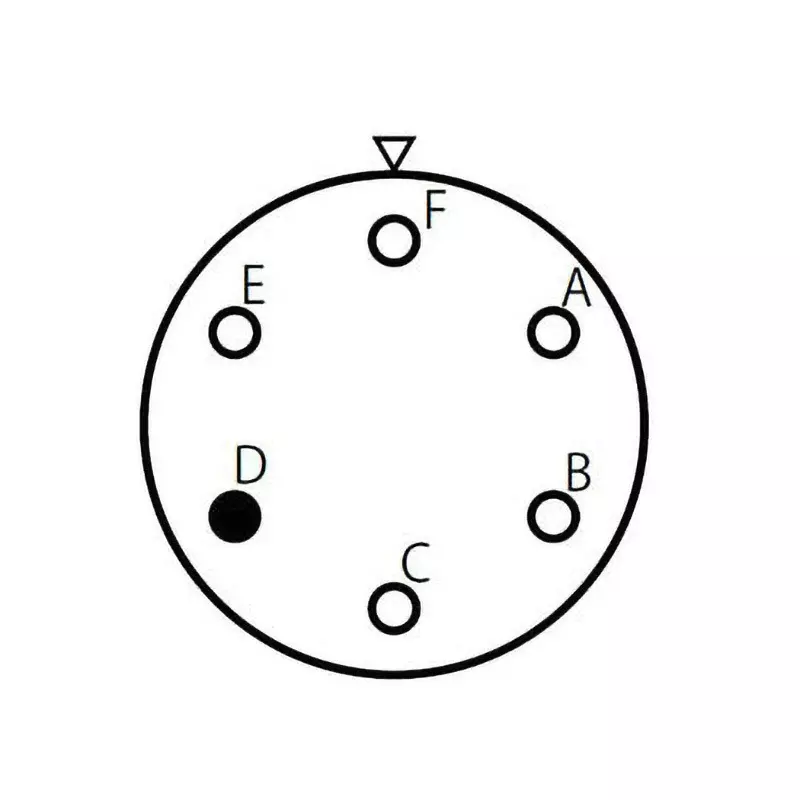

No. of Pole |
6 |
Color |
(Outer Shell) Black |
Shape |
Straight |
Model No |
CE05-6A18-12SD-D-BSS |
Country of Origin |
Japan |
Connection Type |
Screw |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Withstand Voltage |
AC 2000V (1 minute) |
Insulation Resistance (MOhm) |
5000 or more (DC 500 V) |
Specifications |
No reverse core |

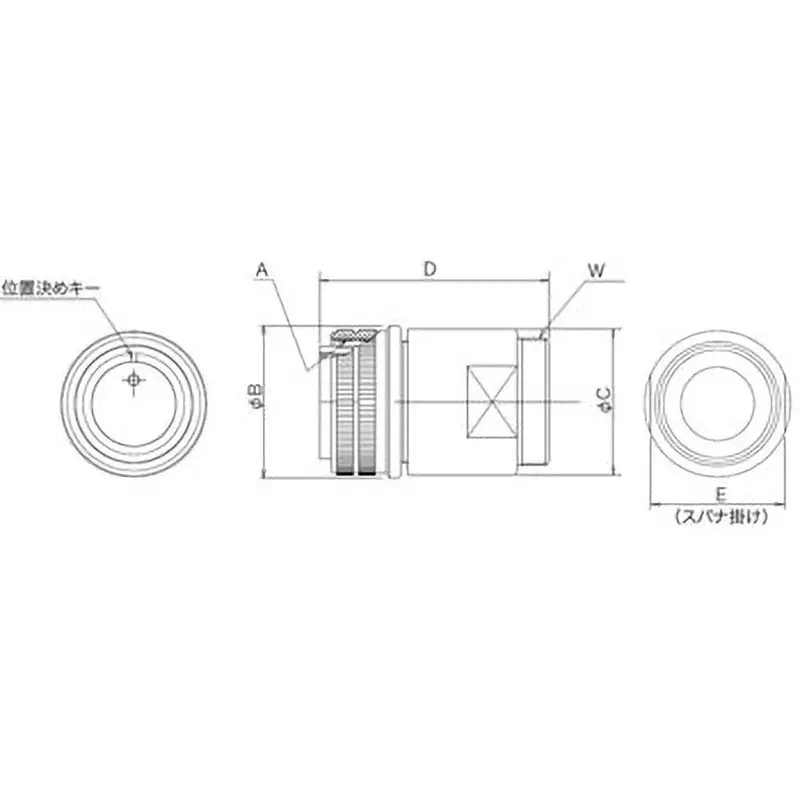

Dimension B (Φmm) |
34.13(+0/-0.38) |
Dimension d |
57 mm or more |
Operating Temperature (c) |
-55 to +125℃ |
Rated Voltage (V) |
AC 250 |
Rated Current (A) |
13 |
Surface Treatment |
(Outer Shell) Trivalent Chromate |
Dimension C (Φmm) |
32.1(±0.8) |
Dimension E (Φmm) |
26.7 mm |
Connector Shape |
Straight plug (with straight back shell) |
Current Capacity (Amps) |
(Per Contact) Max. 13 (Total Of Connectors) 43.6 |
Standard to Conform |
(TUV)R9451253 |
