| Type of Product | With Angle Back Shell |
| Monotaro ID | 50558464 |
| Suitable For | (Receptacle) CE05-2A22-22PD-D (Waterproof cable clamp) CE3057-12A-XD |
| Type | Round Type |
Type of Product |
With Angle Back Shell |
Monotaro ID |
50558464 |
Suitable For |
(Receptacle) CE05-2A22-22PD-D (Waterproof cable clamp) CE3057-12A-XD |
Type |
Round Type |

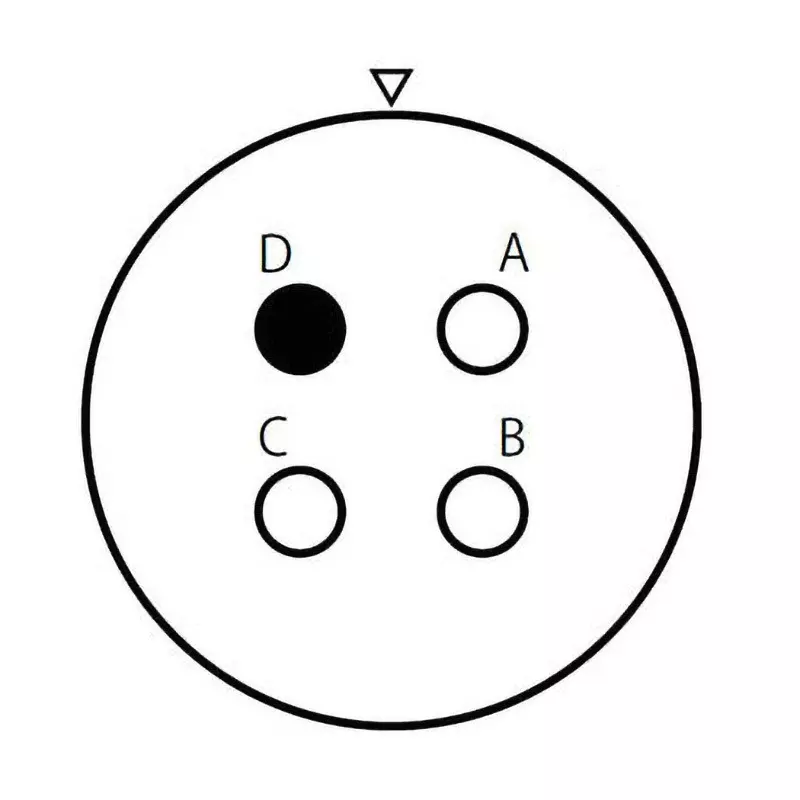

No. of Pole |
4 |
Color |
(Outer Shell) Black |
Shape |
Angle |

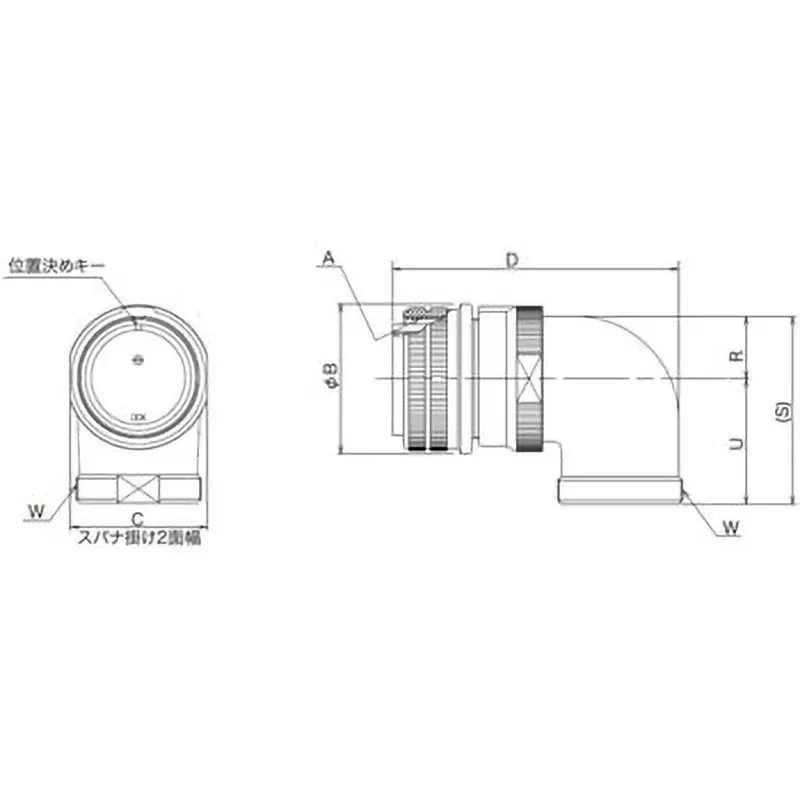

Dimension U (mm) |
33.3(±0.7) |
Model No |
CE05-8A22-22SD-D-BAS(R1) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikura (formerly DDK/Daiichi Electronics Industries) |
Withstand Voltage |
AC 3000 V (1 minute) |
Insulation Resistance (MOhm) |
5000 or more (DC 500 V) |
Specifications |
Inverted core |
Dimension B (Φmm) |
40.48(+0/-0.38) |
Dimension C |
36.2 mm |
Dimension d |
75.5 mm or less |
Operating Temperature (c) |
-55 to +125℃ |
Rated Voltage (V) |
AC 250 |
Rated Current (A) |
46 |
Surface Treatment |
(Outer Shell) Trivalent Chromate |
Connector Shape |
Angle plug (with angle back shell) |
Current Capacity (Amps) |
Up to 46 (per Contact) (comprehensive connector) 125.1 |
Dimension S |
49.6 mm (±1) |
Dimension R |
16.3 mm (±0.7) |
